Crathco-UNIC PBC-1A Crathco Beverage Coffee Brewers
Description

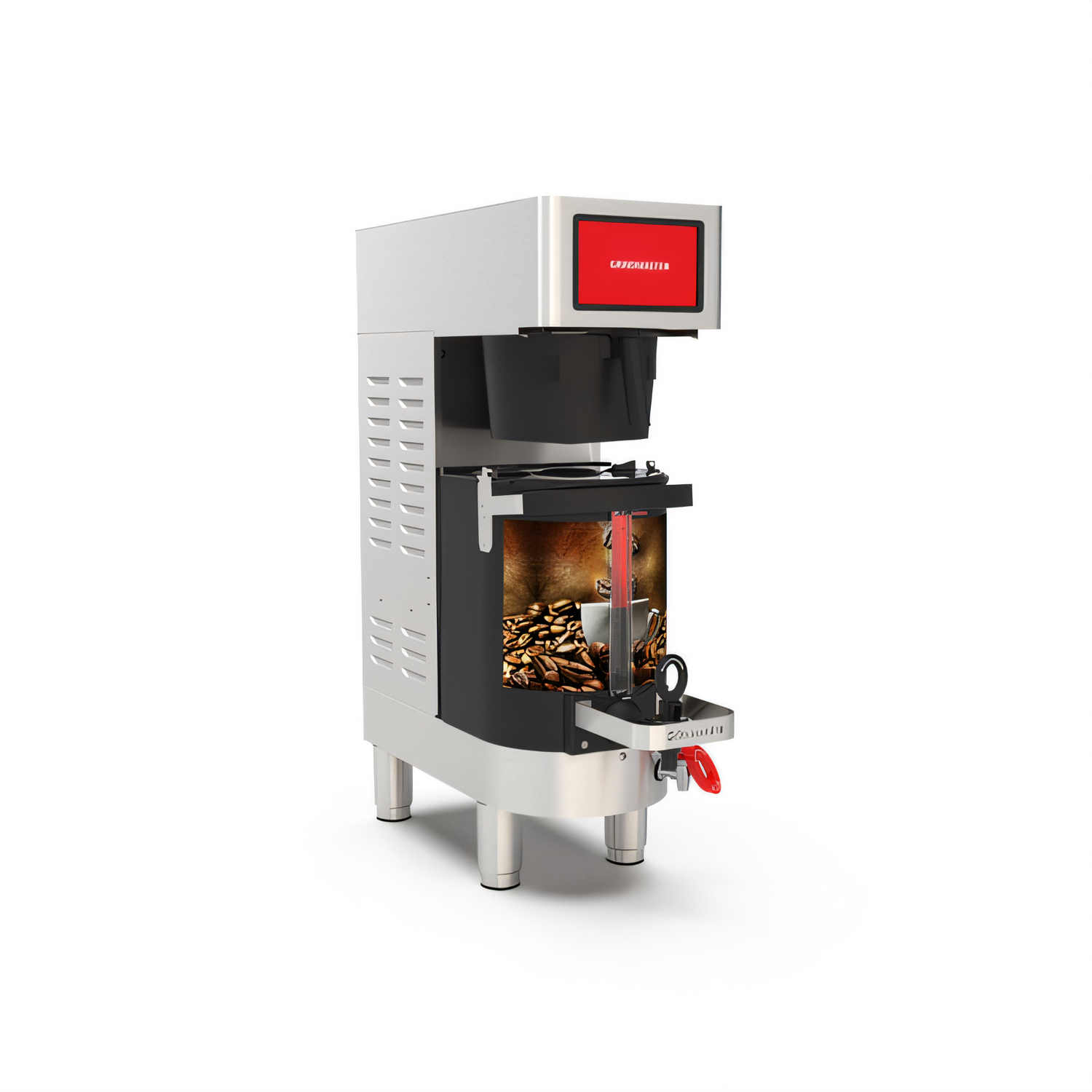

Crathco PrecisionBrew™ Air-Heated Shuttle® Coffee Brewer
Model LV606056 • PBC-1A • Single 1.5 gal BrewerBrew every batch to Specialty Coffee Association “Golden Cup” standards with the PrecisionBrew™ Air-Heated Shuttle® Brewer. Designed for high-volume cafés, bakeries, convenience stores and catering operations, this single-head brewer delivers up to 1.5 gallons of perfectly mixed, ready-to-serve coffee into a portable, air-insulated Shuttle® (sold separately) – keeping flavor and temperature locked in for hours.
Why You’ll Love It
- Three programmable brew volumes – 0.5, 1.0 or 1.5 gal (1.9, 3.8, 5.7 L) – slash waste during slow periods and keep pace during rushes.
- Advanced touchscreen interface simplifies recipe selection, diagnostics and cleaning prompts.
- Virtual sight glass with color-changing LED instantly shows brew progress and freshness status.
- Java-Tate™ shuttle agitation (in optional AS15 Shuttle) gently stirs the batch, guaranteeing consistent flavor from first cup to last.
- Air-heated Encapsulair™ Shuttle® insulation maintains serving temperature without added heat that can scorch coffee.
- Powerful 3.2 gal (12.1 L) stainless steel heating tank ensures rapid recovery between cycles.
- Brewer is cULus & NSF certified for worry-free commercial compliance.
Technical Specifications
| Brewing Capacity | 0.5, 1.0, 1.5 gal per batch |
|---|---|
| Electrical | 240 V / 7.0 kW / 60 Hz / 1 Phase |
| Product Dimensions (H × W × D) | 30.13 in × 9.13 in × 18.88 in (77 cm × 23 cm × 50 cm) |
| Ship Weight | 50 lb (22.7 kg) |
| Water Connection | ¼ in flare; 30–80 psi |
| Heating Tank | 3.2 gal (12.1 L) per brew head |
| Certifications | NSF, cULus |
Compatible Accessories (Sold Separately)
- AS15 Air-Heated Shuttle®, 1.5 gal (Part # 2503-006)
- Shuttle Stand with integrated warmer, 120 V / 0.13 kW (Part # 1502-004)
- Custom Graphic Wrap Kit for Shuttle (Part # 380-00335)
Installation & Utilities
- Dedicated 240 V, single-phase circuit required.
- Connect to cold, filtered water within the specified pressure range to maximize component life and beverage quality.
- Allow at least 4 in (10 cm) clearance on all sides for ventilation and service access.
For full warranty terms and registration, visit Crathco Technical Services.
