Crathco-UNIC CS-4E-16-290 (BPA FREE) Crathco Beverage Hot Water/Beverage Dispensers
Crathco-UNIC CS-4E-16-290 (BPA FREE) Crathco Beverage Hot Water/Beverage Dispensers is backordered and will ship as soon as it is back in stock.
Documents
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Crathco-UNIC CS-4E-16-290 (BPA FREE) Crathco Beverage Hot Water/Bev...
Description

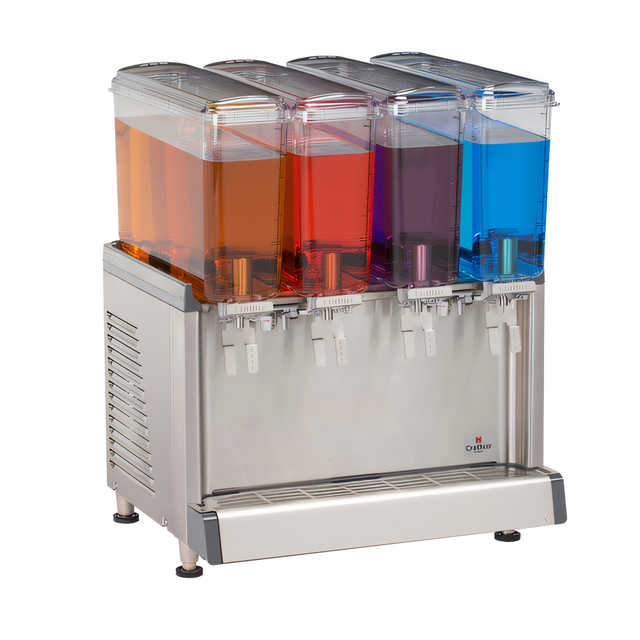

Crathco Simplicity® Bubbler® Mini-Quad Pre-Mix Cold Beverage Dispenser
Model CS-4E-16-290 | 4 × 2.4 gal bowls | 120 V agitatorServe four ice-cold, crystal-clear flavors from a footprint barely wider than 20 inches. The Simplicity® Mini-Quad combines Crathco’s durable stainless base with easy-clean, BPA-free bowls and an energy-saving R290 refrigeration system—giving you reliable performance, faster cleanup, and lower operating costs.
Why you’ll love it
- Four 2.4 gal (9 L) clear bowls let you showcase & serve up to 9.6 gal of product.
- Agitator system is ideal for juices, teas, coffees & froth-sensitive beverages.
- Easy-off bowl release—no more reaching inside for stubborn latches.
- Locking lids improve safety and help contain cold air.
- 9″ cup clearance accommodates everything from tasting cups to large to-go tumblers.
- Interchangeable design accepts optional 4.75 gal (18 L) bowls for future growth.
- Bottom air-intake / rear exhaust boosts cooling efficiency & extends compressor life.
- Heavy-product dispense valves handle pulpier drinks like lemonades & horchatas.
- Fewer removable parts = quicker nightly cleaning and lower labor costs.
- NSF-listed, cULus certified, and completely BPA-free.
Technical specifications
| Capacity | (4) × 2.4 gal bowls = 9.6 gal (36 L) |
|---|---|
| Temperature range | 35 – 41 °F (1.7 – 5 °C) |
| Refrigerant / compressor | R290, 1/10 HP |
| Dispense method | Agitator (minimal foaming) |
| Cup clearance | 9 in (22.9 cm) |
| Electrical | 120 V / 60 Hz / 1-ph, 8.5 A, NEMA 5-15P |
| Overall dimensions (H × W × D) | 27.5 ″ × 20.5 ″ × 18.5 ″ (70 × 52 × 47 cm) (includes 4 ″ legs) |
| Ship weight | 99 lb (44.9 kg) — ships in 2 boxes |
| Construction | Stainless steel base, dishwasher-safe BPA-free bowls & lids |
| Certifications | NSF, cULus, BPA Free |
Industry-leading warranty
• 1-year labor • 2-year parts • 5-year compressor (registration required; see Crathco warranty policy for details)
Care & preventive maintenance
- Bowls, lids, and dispense valves are top-rack dishwasher safe.
- Replace bowl gaskets, seals & impellers every 9 months (PM Kit #390-00094).
- Keep the underside air filter clean for maximum cooling efficiency.
- Complete operator manuals & video tutorials are available at grindmaster.com.
