Crathco-UNIC CS-3L-16-290 Crathco Beverage Hot Water/Beverage Dispensers
Crathco-UNIC CS-3L-16-290 Crathco Beverage Hot Water/Beverage Dispensers is backordered and will ship as soon as it is back in stock.
Documents
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Crathco-UNIC CS-3L-16-290 Crathco Beverage Hot Water/Beverage Dispe...
Description

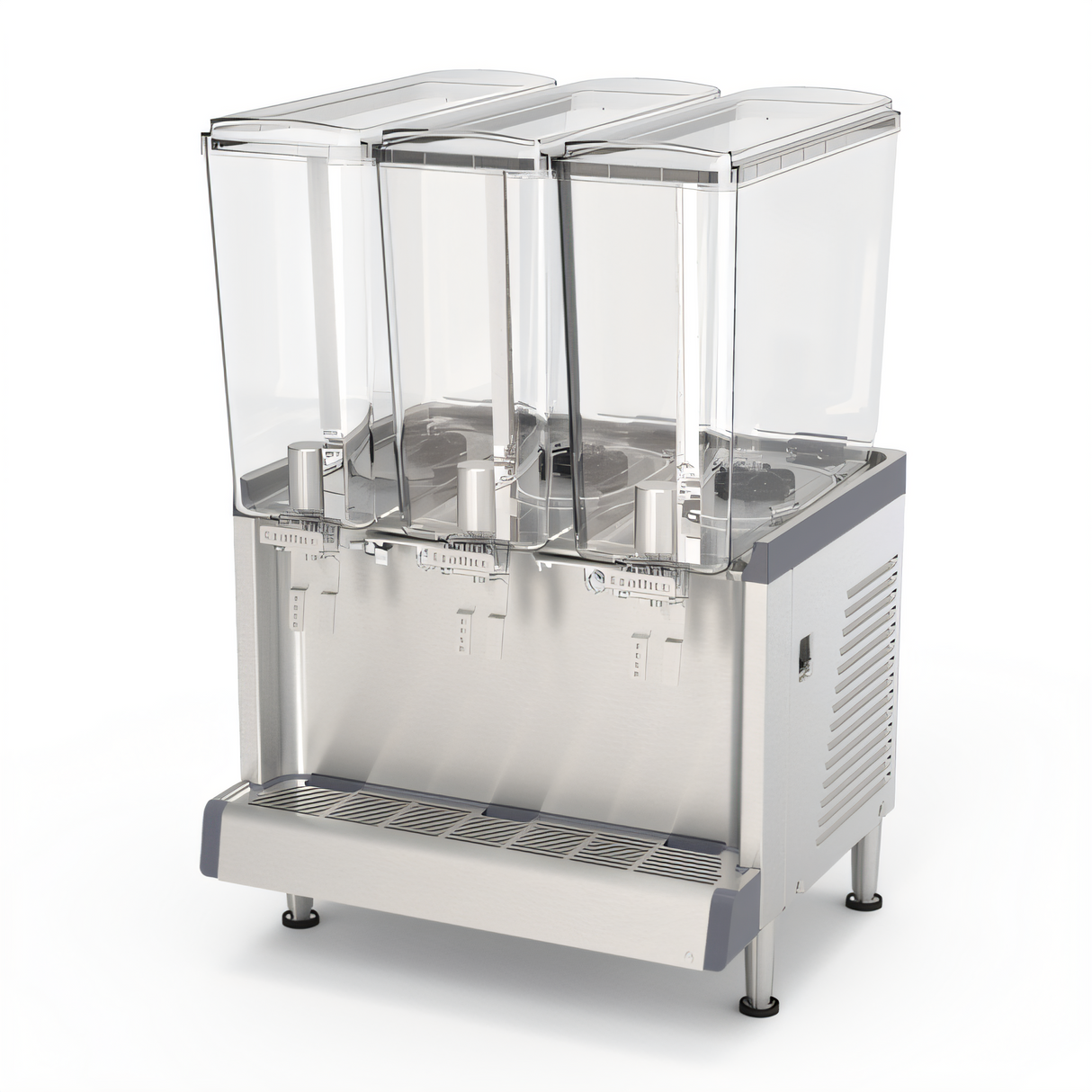

Simplicity™ Bubbler® Triple Tall Pre-Mix Dispenser
Crathco Model CS-3L-16-290 - 120 VServe three crowd-pleasing flavors from one compact footprint. The Crathco Simplicity™ Bubbler® Triple Tall keeps up to 14.25 gal (54 L) of juice, lemonade, iced coffee, tea, horchata and more cold, mixed and ready to pour—right down to the very last drop.
Key features at a glance
- Three 4.75 gal / 18 L clear bowls—choose polycarbonate or BPA-free.
- Triple agitator design gently stirs product for consistent flavor with minimal foaming.
- Heavy-product dispense valves handle thicker recipes like lemonades & horchatas.
- Easy-off bowl release—no more reaching inside; cuts cleaning time and labor.
- Stainless-steel base with 4″ legs fits on any counter and wipes clean in seconds.
- 9″ (22.9 cm) cup clearance accommodates everything from rocks glasses to large to-go cups.
- Bottom air intake / rear exhaust maximizes cooling efficiency while saving counter space.
- Reliable 35 – 41 °F (1.7 – 5 °C) temperature range maintained by eco-friendly R290 refrigerant.
- Locking lids help protect product and increase operator safety.
- Fewer removable parts for faster daily cleaning and reduced maintenance costs.
Technical specifications
| Capacity | 3 × 4.75 gal (3 × 18 L) |
|---|---|
| Dispensing type | Pre-mix, cold (not frozen) |
| Temperature range | 35 – 41 °F (1.7 – 5 °C) |
| Agitation | Individual magnetic impeller in each bowl |
| Cup clearance | 9″ (22.9 cm) |
| Compressor | 1/10 HP, hermetically sealed |
| Refrigerant | R290 (environmentally friendly hydrocarbon) |
| Electrical | 120 V / 60 Hz / 1-ph, 8.5 A |
| Plug | NEMA 5-15P factory-installed cord |
| Product dimensions* | 31.3″ H × 20.5″ W × 18.5″ D (79.5 × 52 × 47 cm) |
| Net weight | 101 lb (46 kg) shipped in two cartons |
| Certifications | cULus, NSF Certified |
*Height includes 4″ (10 cm) adjustable legs.
Maintenance made simple
- Disassembles in minutes—no tools required for daily cleaning.
- Recommended preventive maintenance kit (bowl gaskets, impellers, plunger seals & filter) every 9 months.
- Online manuals and how-to videos available 24/7 from Crathco.
Industry-leading warranty
- 1 year on-site labor (pre-authorized).
- 2 years parts coverage.
- 5 years compressor warranty.
Warranty valid upon online registration and for commercial installations only; see full terms at crathco.com.
