Advance Tabco DTS-K30-48L Korner Compartment Sinks
Description

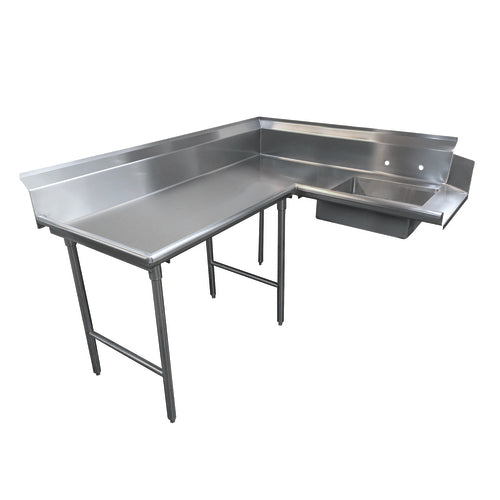

Advance Tabco “KORNER” Soil Dishtable – Left Feed, 47" (4 ft)
Model DTS-K30-48L (Spec-Line Series)Build a space-saving, L-shaped dishroom layout without sacrificing durability or workflow. This 47 inch “KORNER” soil dishtable fits to the left of your dish machine operator, providing an integrated pre-rinse sink and generous scrap area—all fabricated from heavy-duty 14 gauge 304 stainless steel.
Key Features
- 14 ga 304 SS Top with satin finish resists corrosion, chemicals & high-volume abuse.
- 10½″ extra-high backsplash with 2″ return & tile edge for a sanitary, fast installation against any wall.
- Integrated pre-rinse sink – 20″ × 20″ × 8″ deep, factory-punched 8″ o/c faucet holes (faucet not included).
- Includes stainless steel prerinse basket; slide bar supplied when a K-461/K-461A disposer adapter is specified.
- 1 ½″ IPS basket-type waste drain shipped loose for on-site positioning.
- 16 ga 304 SS 1⅝″ legs with welded stainless crossrails & adjustable bullet feet for rock-solid support.
- All TIG welds blended to match surrounding surfaces for a smooth, easy-to-clean work zone.
- NSF listed & proudly made in the USA.
At-a-Glance Specifications
| Overall length (L-shape) | 47″ nominal (4 ft) – left feed configuration |
|---|---|
| Top material / gauge | 14 ga type 304 stainless steel |
| Backsplash height | 10 ½″ H with 2″ return & tile edge |
| Sink bowl size | 20″ × 20″ × 8″ D (welded-in) |
| Legs / bracing | 1 ⅝″ 16 ga 304 SS legs with welded SS crossrails |
| Drain connection | 1 ½″ IPS basket drain (included) |
| Faucet drilling | (2) 1 ⅛″ holes on 8″ centers |
| Approx. shipping weight | 165 lb |
| NSF/ANSI compliance | Yes – NSF listed |
Installation Notes
- Designed to mount directly to the left side of most 44-/66--series corner dish machines.
- Verify required clearances using the Advance Tabco Dish Machine Compatibility Chart prior to ordering.
- Tile-edge backsplash speeds mounting to a coved or tiled wall—no extra flashing needed.
What’s Included
- KORNER left-feed soil dishtable with welded sink & backsplash
- Stainless steel prerinse basket (slide bar ships only when disposer adapter is ordered)
- 1 ½″ IPS basket drain assembly
- Adjustable stainless bullet feet (installed)
Need a different length, right-hand corner, clean tables, or add-on shelves? Ask us about additional Advance Tabco Smart Fabrication™ options to build an entire dishroom system here.
