AccuTemp ALLGB-100 Edge Series™ Steam Kettles
AccuTemp ALLGB-100 Edge Series™ Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
AccuTemp ALLGB-100 Edge Series™ Steam Kettles
Description

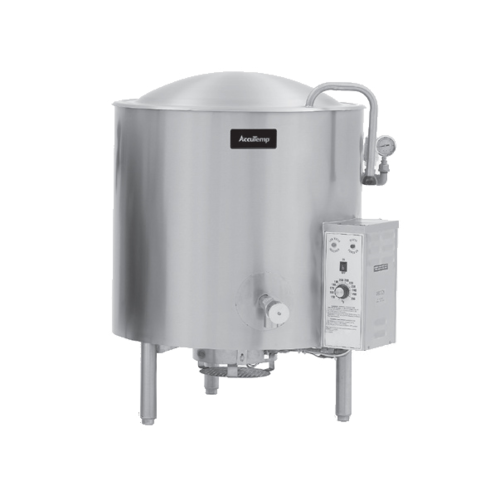

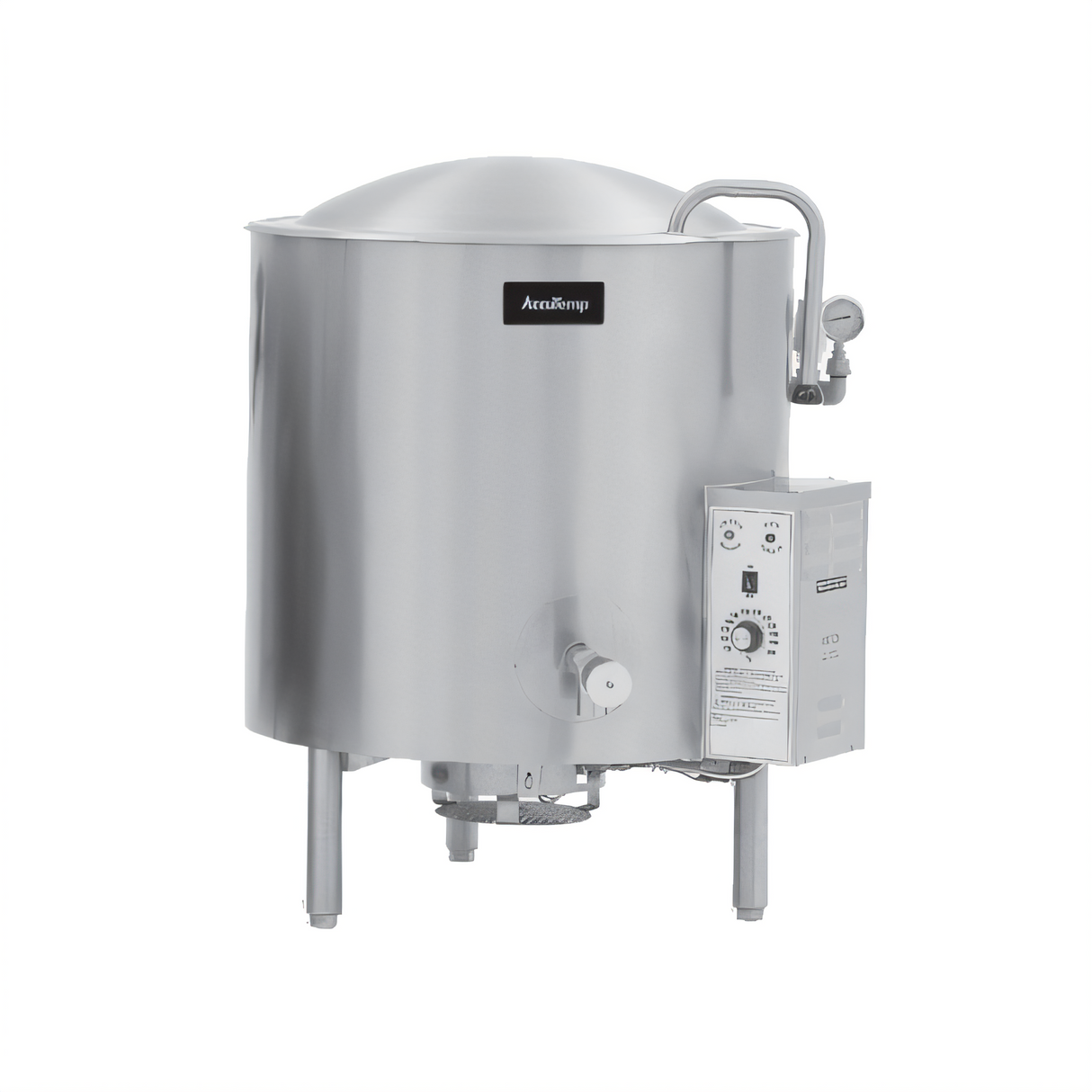

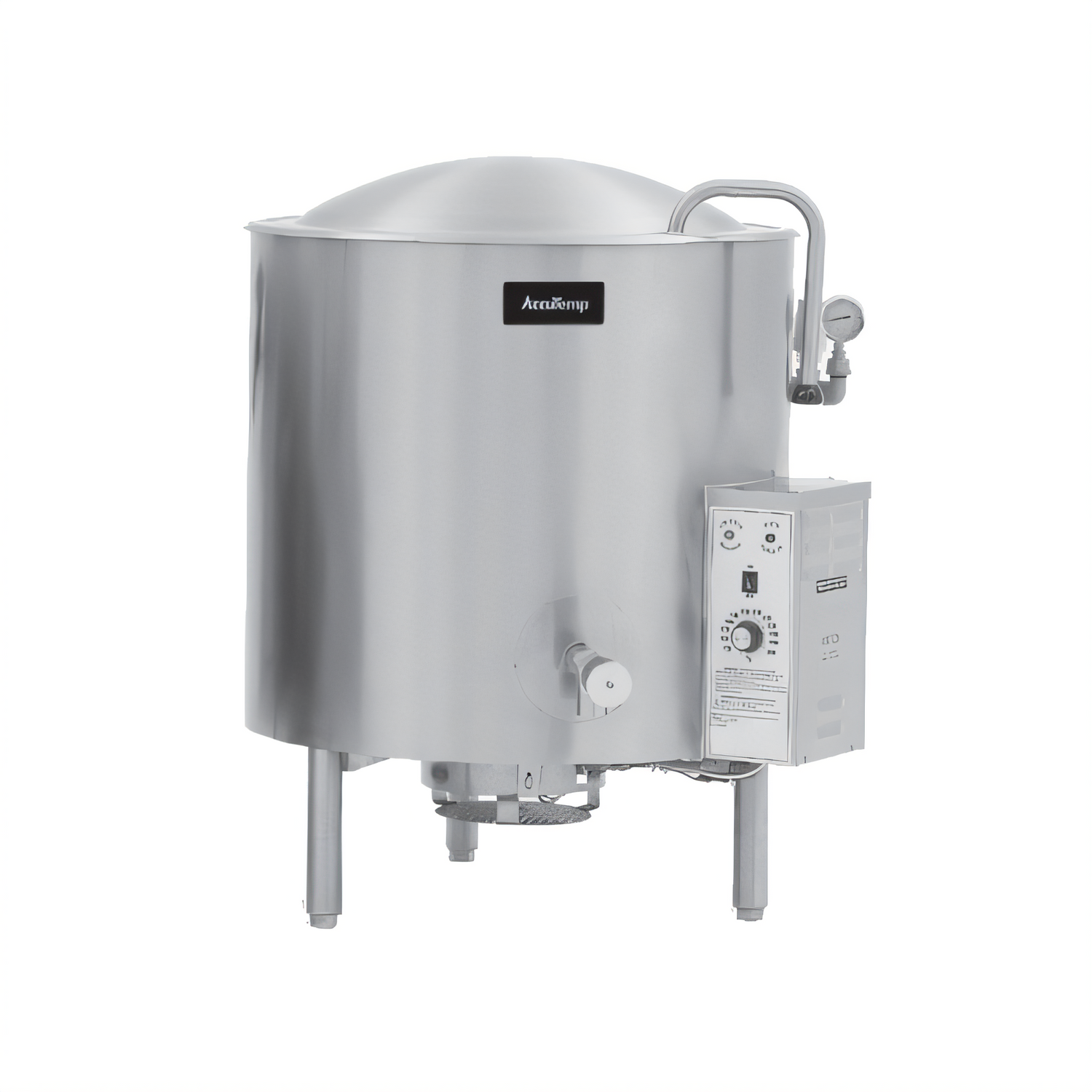

AccuTemp Edge Series™ 100 Gallon Stationary Gas Kettle
Model ALLGB-100F | 2/3-Jacketed • Low-Rim • Insulated for Safety™Built for the busiest production kitchens, the Edge Series™ 100 gallon floor kettle delivers high-volume, hands-free cooking with legendary AccuTemp reliability. A fully self-contained, gas-fired heating system, deep-drawn 304 stainless kettle liner, and 2/3 steam jacket give you rapid heat-up times, uniform temperatures, and the durability you expect from equipment made in the USA.
Why You’ll Love It
- Massive 100 gal (380 L) working capacity – perfect for stocks, soups, sauces & bulk cook-chill production
- 154,800 BTU gas burner with electronic ignition for fast recovery and simple start-up
- 2/3 jacketed design (30 PSI rating) surrounds product for even, scorch-free heating
- Seamless deep-drawn 304 SS kettle liner with integrally formed radius lip – no interior welds to clean or fail
- Full-body insulation keeps outer surfaces cooler and saves energy
- One-piece, domed stainless lid with actuator-assist – easy lift even when you’re wearing gloves
- 2" compression draw-off valve with removable perforated disc strainer (¼" holes) for clog-free portioning
- Leg-mounted, low-rim configuration for safe access to the kettle mouth
- Built-in kettle protection system: thermostat (150 – 260 °F), air eliminator, pressure relief, low-water cutoff & indicator light
- UL Gas-Fired & NSF listed; conforms to all applicable sanitation & safety standards
- Made in New Haven, Indiana – backed by AccuTemp’s one-year parts & labor warranty
Technical Specifications
| Capacity | 100 gal / 380 L |
|---|---|
| Heat Source | Gas (Natural or LP) |
| Input | 154,800 BTU/hr |
| Operating Pressure | 30 PSI steam jacket |
| Jacket | 2/3 coverage, water-filled, self-contained |
| Liner Material | 304 Stainless Steel |
| Ignition | Electronic (120 V, 1 ph, 1 amp) |
| Draw-Off Valve | 2" compression, stainless, with strainer |
| Cover | One-piece domed stainless, actuator-assisted |
| Mounting | Four stainless legs with adjustable bullet feet |
| Certifications | UL (Gas-Fired), NSF |
| Country of Origin | USA |
Factory Options & Accessories
- Single or dual fill faucet (12" / 18" swing nozzle) with bracket
- 60" flexible spray hose assembly (vinyl or stainless)
- 3" draw-off valve upgrade
- Automatic water-fill meter
- Two-speed mixer/agitator (call for pricing)
- Care Kit, measuring strip, nylon bag & basket inserts, and more
Need a specific configuration? Reach out via the “Ask a Question” button or speak with your AccuTemp representative.
Warranty
Edge Series™ kettles include AccuTemp’s one-year parts & labor warranty (U.S. & Canada). Extended coverage is available – ask for details.
Specifications are subject to change without notice. For detailed installation drawings, utility requirements, or additional accessories, please consult the factory or visit accutemp.net.
