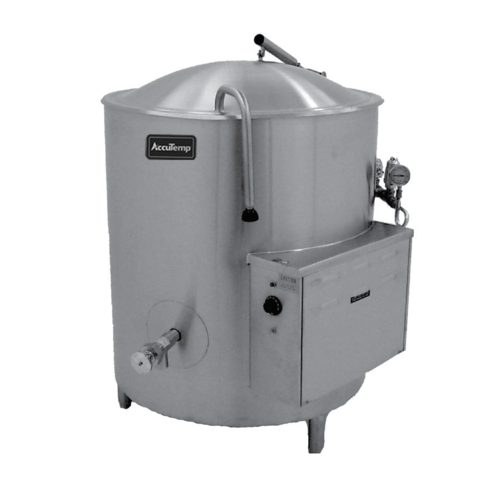

AccuTemp ALLEC-80 Edge Series™ Steam Kettles
Description
AccuTemp Edge Series™ 80-Gallon Stationary Electric Kettle
Model ALLEC-80 | 2/3-Jacketed • Self-Contained • Made in USADesigned for demanding high-volume kitchens, the Edge Series™ 80-gallon kettle delivers consistent, scratch-free cooking performance in a compact, fully insulated floor unit. Seamless deep-drawn stainless steel construction, field-replaceable elements, and an actuator-assisted one-piece cover make this kettle a long-term, low-maintenance workhorse.
Key Features & Benefits
- Massive 80 gallon (303 L) capacity – ideal for sauces, soups, stocks, and bulk cooking.
- 2/3 jacketed design with 30 PSI operating pressure for rapid, even heat transfer.
- Self-contained 30 kW electric heating system – no external boiler required.
- Seamless, deep-drawn 304 stainless steel liner and jacket for maximum durability and food safety.
- Actuator-assisted, one-piece domed cover reduces operator fatigue and allows single-handed operation.
- Full body insulation keeps exterior surfaces cool and boosts energy efficiency.
- AccuTemp Kettle Protection System:
- Electronic thermostat, 150 °F – 285 °F (65 °C – 141 °C)
- Low-water cut-off with indicator light
- Pressure relief & air eliminator valves
- Analog pressure gauge & manual jacket fill port
- 2" compression draw-off valve with removable ¼" perforated disc strainer for easy portioning and cleanup.
- Field-replaceable heating elements minimize downtime and service costs.
- Four heavy-duty, adjustable bullet feet for quick leveling on uneven floors.
- UL Listed & NSF Certified for sanitation and electrical safety.
Technical Specifications
| Capacity | 80 gal | 303 L |
|---|---|
| Heating Power | 30 kW, electric (field-wired) |
| Voltage Options | 208 V, 240 V, 380 V, 415 V, 440 V, 480 V • 1- or 3-phase |
| Typical Amps (3-phase) | 83.3 A @ 208 V • 72.2 A @ 240 V • 36.1 A @ 480 V |
| Operating Pressure | 30 PSI jacket |
| Exterior / Liner Material | 304 stainless steel, seam welded |
| Cover | One-piece, actuator-assisted domed stainless cover |
| Dimensions (WxDxH) |
32.5" × 27.6" × 46.9" (826 × 701 × 1 191 mm) |
| Installation | Floor mounted, 4-leg frame with adjustable feet |
| Ship Weight | Consult factory |
| Certifications | UL, NSF, USA built |
| Warranty | 1-year parts & labor (U.S./Canada) |
Popular Accessories (Sold Separately)
- Single or dual faucet assemblies with 12" or 18" swing nozzles
- 60" flexible spray hose (vinyl or stainless)
- Electric timer with audible buzzer
- Tri-basket or single basket inserts, nylon bag kits
- 3" draw-off valve, solid disc strainer, measuring strip & more
Need a different capacity, mixer/agitator, or correctional package? Contact our sales team for custom configurations.
