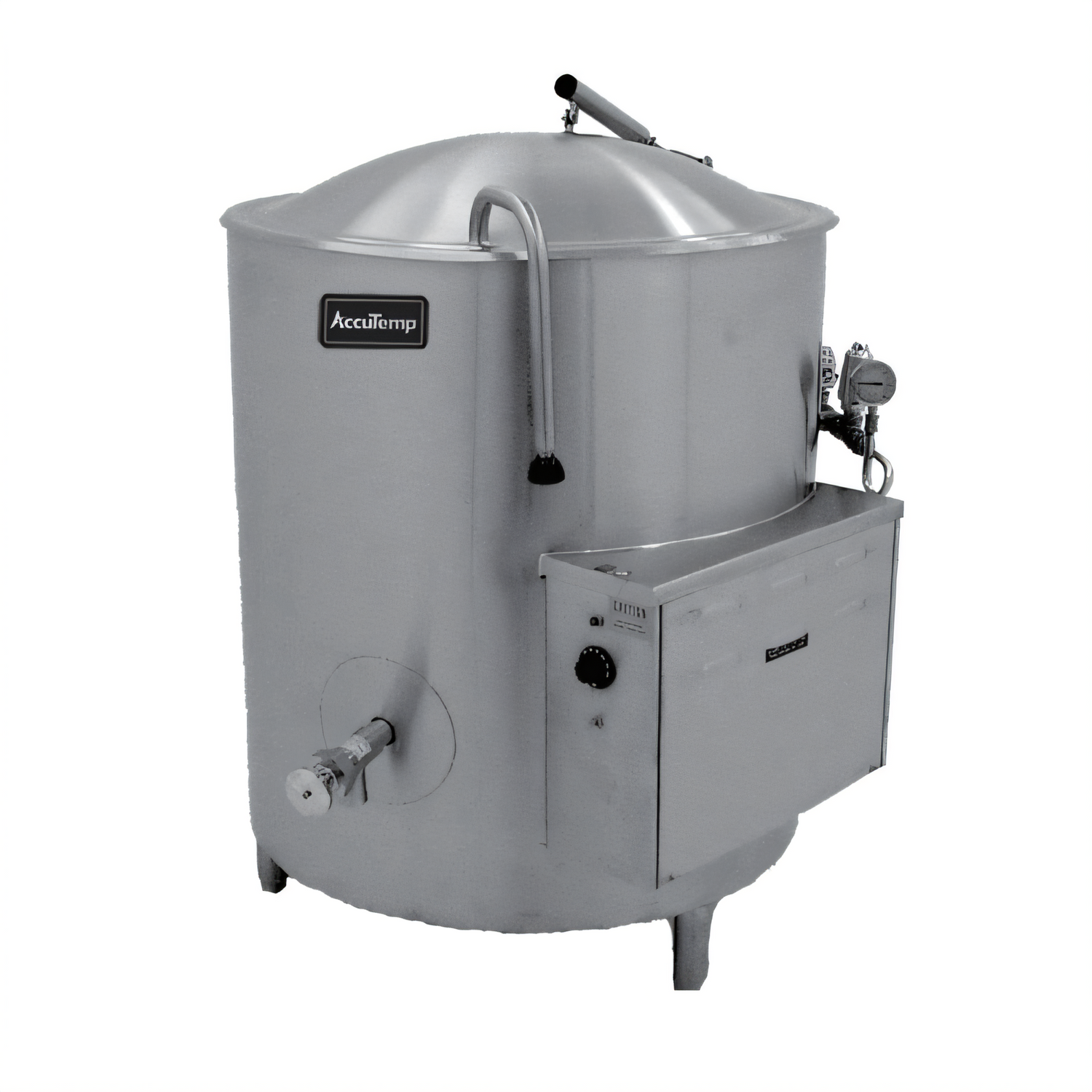

AccuTemp ALLEC-20 Edge Series™ Steam Kettles
AccuTemp ALLEC-20 Edge Series™ Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
AccuTemp ALLEC-20 Edge Series™ Steam Kettles
Description
AccuTemp Edge Series™ Electric Stationary Kettle – 20 Gal
Model ALLEC-20 | 2/3 Jacketed • 316 SS Liner • 30 PSI • UL & NSF ListedBuilt in the USA for kitchens that refuse to compromise, the Edge Series™ 20-gallon kettle delivers fast, even heating, rock-solid durability and operator-first safety in a compact, non-tilting, floor-mounted design. From silky soups to high-volume sauces, you’ll get flawless results every shift while saving energy and labor.
Why You’ll Love It
- Deep-drawn 316 stainless steel liner resists corrosion from acidic foods.
- 2/3 steam jacket surrounded by full-body insulation for cooler exterior surfaces and reduced energy loss.
- Field-replaceable heating elements—no need to unhook plumbing or steam.
- Precise thermostat control from 150 °F – 285 °F (65 °C – 140 °C).
- Self-contained water system with low-water cut-off and indicator light.
- One-piece hinged cover keeps condensation inside and lifts effortlessly.
- 2″ stainless compression draw-off valve with perforated ¼″ strainer included.
- Four stainless legs with adjustable bullet feet for easy leveling.
- Made & supported in the USA—backed by a 1-year parts & labor warranty.
Technical Specs
| Capacity | 20 gal | 75.7 L |
|---|---|
| Steam Jacket | 2/3 coverage, 30 PSI rating |
| Liner Material | 316 stainless steel (seamless, deep-drawn) |
| Outer Jacket / Casing | 304 stainless steel, seam-welded & insulated |
| Heating Elements | 9 kW, field replaceable |
| Voltage Options | 208, 240, 380, 415, 440, 480 V | 1 Ø or 3 Ø |
| Amps (208 V) | 43.3 A (1 Ø) / 25.0 A (3 Ø) |
| Temperature Range | 150 °F – 285 °F (65 °C – 140 °C) |
| Draw-Off Valve | 2″ compression, ¼″ perforated disc strainer |
| Dimensions (WxDxH) | 34.0″ × 22.0″ × 32.4″ to lid rim (overall height to open lid: 64.3″) |
| Certifications | UL, NSF, Made in USA |
| Warranty | 1-year parts & labor (U.S./Canada) |
Popular Accessories (Sold Separately)
- 60″ flexible spray hose assembly (vinyl or stainless)
- Single/dual faucet with 12″ or 18″ swing nozzle
- Electric timer with buzzer
- Basket or tri-basket inserts for pasta & stocks
- Care Kit for routine maintenance
Registration required at installation for warranty activation. See AccuTemp Owner’s Manual for full terms.
