AccuTemp ALHEC-80 Edge Series™ Steam Kettles
Description

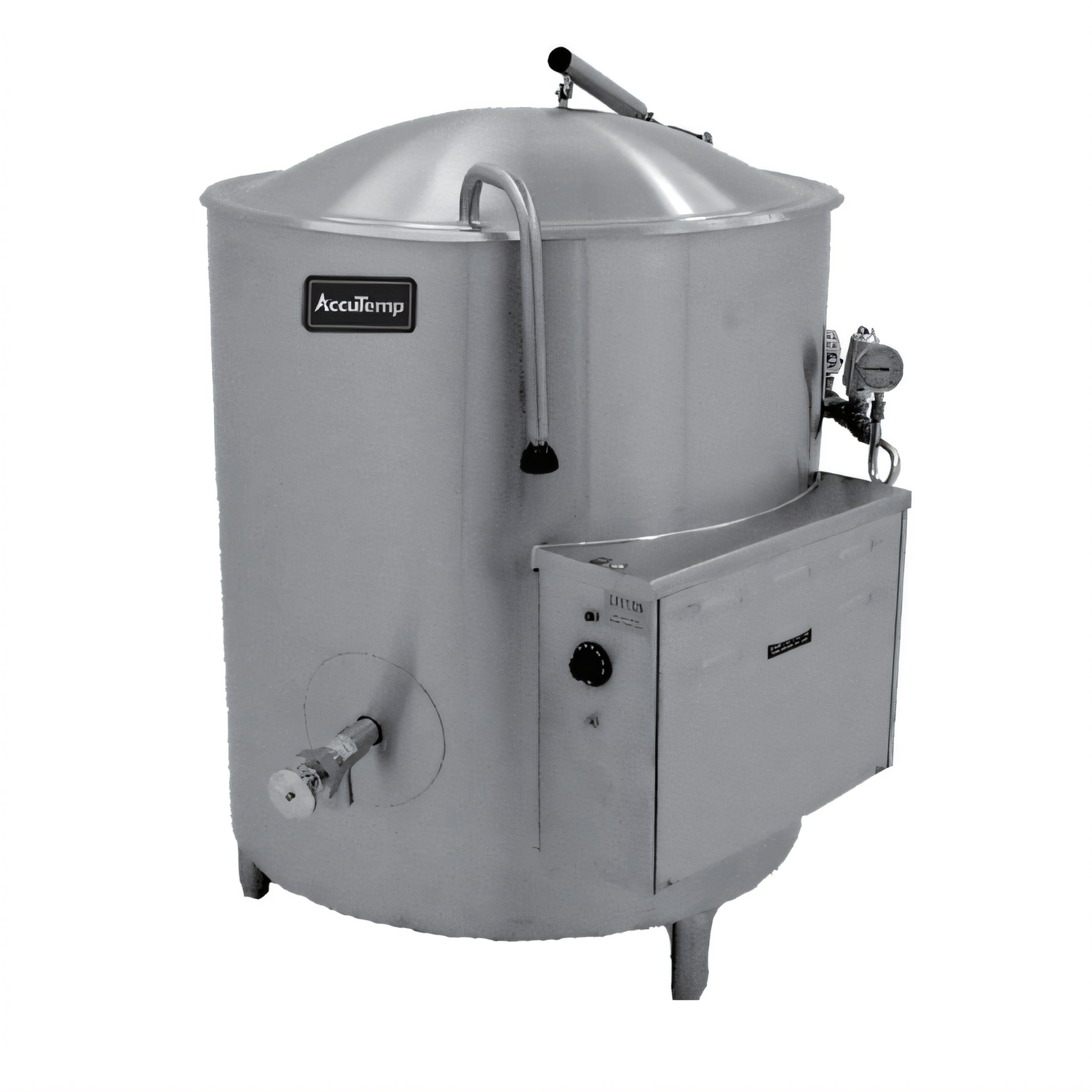

AccuTemp Edge Series™ 80-Gallon Stationary Electric Kettle
Model ALHEC-80 • 2/3-Jacketed • Leg-Mounted • Made in the USAEngineered for demanding production kitchens, the Edge Series™ 80-gallon kettle delivers the volume you need with the precision you expect from AccuTemp. Full-body insulation, deep-drawn stainless construction and field-replaceable elements keep your line moving shift after shift—while using Insulated for Safety™ technology to protect staff and conserve energy.
Why You’ll Love It
- Massive 80-gallon (303 L) working capacity handles stocks, soups, sauces and sous-vide bags with ease.
- 2/3 steam jacket provides fast, even heat from 150 °F – 285 °F (65 °C – 140 °C) without hot spots.
- Seamless deep-drawn 304 stainless liner resists pitting and is easy to clean.
- Full fiberglass insulation between kettle and exterior shell reduces heat loss and saves energy.
- Field-replaceable electric heating elements minimize downtime and service costs.
- One-piece, actuator-assisted domed cover can be opened with one hand and stays wherever you position it.
- 2" (51 mm) compression draw-off valve with removable 1/4" perforated disc strainer for fast, clog-free draining.
- Electronic ignition and AccuTemp’s kettle-protection system (low-water cutoff, pressure relief, air eliminator & indicator light) for worry-free operation.
- Adjustable stainless bullet feet level the kettle on uneven floors.
Smart, Simple Controls
- Dial-type thermostat gives precise set-points from simmer to rapid boil.
- Bright indicator lights confirm power and heat status at a glance.
- 0–30 PSI jacket rating with front-mounted gauge lets you monitor pressure in real time.
Technical Specifications
| Capacity (US / Metric) | 80 gal / 303 L |
|---|---|
| Jacket | 2/3-jacketed, 30 PSI operating pressure |
| Liner Material | 304 stainless steel, seamless & deep-drawn |
| Outer Shell | 304 stainless steel, seam-welded |
| Heating Elements | Electric, 36 kW; field replaceable |
| Voltage Options* | 208, 240, 380, 415, 440 or 480 VAC (1- or 3-phase) |
| Amps @ 240 V | 150 A (1-phase) / 86.6 A (3-phase) |
| Overall Dimensions (WxDxH) | 44.4" × 32.5" × 89.4" – top of open lid (1130 × 826 × 2271 mm) |
| Certifications | cCSAus, NSF |
| Origin | Fort Wayne, Indiana USA |
*Specify voltage and phase when ordering.
Popular Factory Accessories (sold separately)
- Single or dual water faucet with 12" or 18" swing nozzle
- 60" flexible spray hose assembly
- Automatic water-fill meter
- Electric timer with buzzer
- 316 stainless liner upgrade for highly acidic products
- Basket inserts and measuring strips
Peace-of-Mind Warranty
Backed by AccuTemp’s one-year parts & labor warranty with nationwide service support.
