AccuTemp ALHEC-60 Edge Series™ Steam Kettles
Description

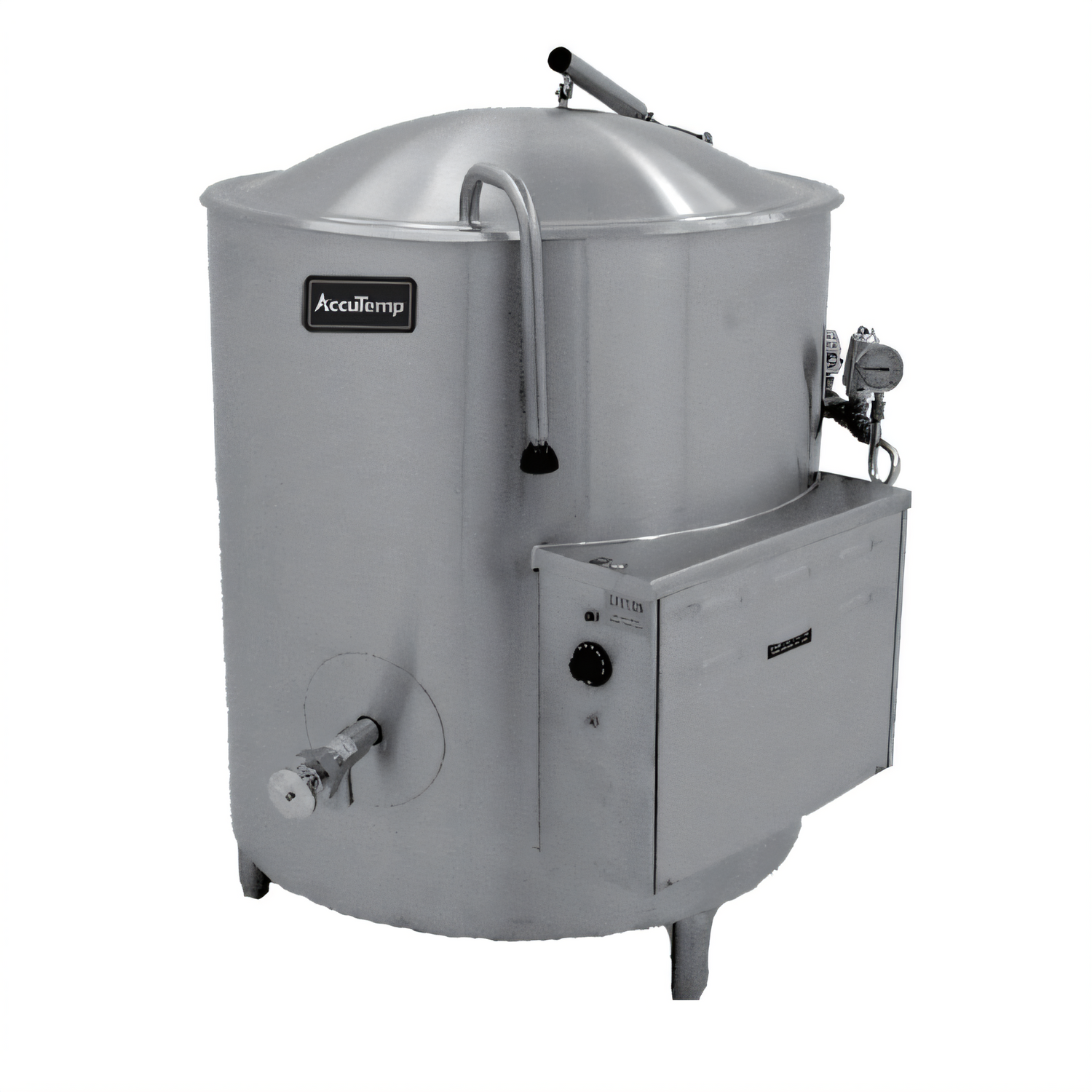

AccuTemp Edge Series™ Self-Contained Stationary Kettle – 60 Gallon Electric
Model ALHEC-60 | 2/3-jacketed | Leg-mounted | Made in USAEngineered for high-volume production with rock-solid reliability, the Edge Series™ 60-gallon electric kettle delivers fast, even heat in a fully insulated, cool-to-the-touch package—perfect for soups, sauces, stocks and more.
Why you’ll love it
- 60 gal (227 L) capacity for bulk batch cooking.
- 2/3 steam jacket rated at 30 PSI for rapid heat-up and uniform temperatures.
- Deep-drawn, seamless 304 SS liner & jacket with integrally formed radius lip.
- Fully Insulated for Safety™ body lowers energy use and protects operators.
- Field-replaceable electric heating elements keep downtime to a minimum.
- Electronic thermostat 150 °F–285 °F (65 °C–140 °C) with low-water cut-off protection.
- One-piece, domed, actuator-assisted stainless-steel cover—easy, single-hand operation.
- 2" compression draw-off valve with removable ¼" perforated disc strainer.
- Leg-mounted frame with adjustable bullet feet for quick, level installation.
- Certified cCSAus & NSF to meet the toughest kitchen standards.
Technical specifications
| Capacity | 60 gal / 227 L |
|---|---|
| Configuration | Stationary, floor-mounted, non-tilting |
| Jacket | 2/3 coverage, 30 PSI, with pressure relief & air eliminator valves |
| Liner material | 304 stainless steel (seamless deep-drawn) |
| Heating type | Electric, field-replaceable elements |
| Power | 36 kW |
| Amperage (per leg) |
208 V 3Ø – 99.9 A 240 V 3Ø – 86.6 A 380 V 3Ø – 54.7 A 415 V 3Ø – 50.1 A 440 V 3Ø – 47.2 A 480 V 3Ø – 43.3 A |
| Thermostat range | 150 °F – 285 °F / 65 °C – 140 °C |
| Cover | One-piece, actuator-assisted, domed 304 SS |
| Draw-off | 2" compression valve with ¼" perforated strainer |
| Construction | Welded 304 SS outer casing & control console, fully insulated |
| Certifications | cCSAus, NSF |
Footprint & clearances (inches)
| A – Inside diameter | 29.5 |
|---|---|
| B – Inside depth | 25.0 |
| C – Overall height (lid closed) | 44.0 |
| D – Overall height (lid open) | 26.1 |
| E – Cooking surface height | 17.3 |
| F – Overall width | 41.4 |
| H – Console depth | 15.4 |
| J(1) – Lid clearance open | 83.0 |
| J(2) – Clearance closed | 66.1 |
Edge Series kettles are also available in 20, 30, 40 and 80 gallon sizes.
Popular accessories (sold separately)
- Single or dual fill faucet with 12" or 18" swing nozzle
- 60" flexible spray hose (vinyl or stainless)
- Electric timer with buzzer
- Single or tri-basket inserts
- Nylon bag insert with spreader ring
Warranty
Protected by AccuTemp’s 1-year parts & labor warranty and supported by a nationwide service network.
