AccuTemp

AccuTemp ALHEC-40 Edge Series™ Steam Kettles

$22,743.60
Delivered by , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Terms & conditions Warranty sheet

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

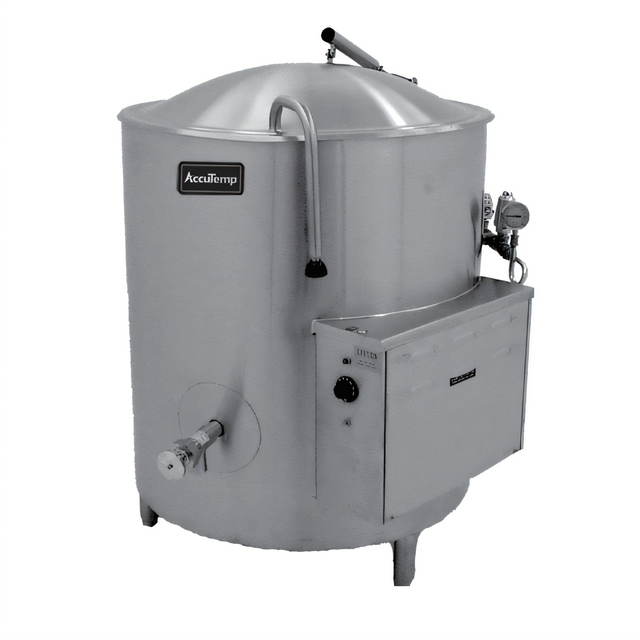

AccuTemp Edge Series™ 40-Gallon Electric Stationary Kettle

Model ALHEC-40 | 2/3-Jacketed | 316 Stainless Liner | Leg-Mounted

Turn out perfectly cooked soups, sauces, stews and more—fast, safely, and with un-matched consistency. The Edge Series™ 40-gallon kettle delivers AccuTemp’s Insulated for Safety™ performance in a space-saving stationary design that’s built to thrive in the busiest commercial kitchens.

Why You’ll Love It
  • Seamless, deep-drawn 316 stainless steel kettle liner (superior corrosion resistance).
  • 2⁄3 steam jacket rated to 30 PSI for rapid, even heating without hot spots.
  • Fully insulated body keeps heat in the kettle—cooler and safer on the outside.
  • Field-replaceable electric heating elements reduce downtime and service costs.
  • 1-piece, actuator-assisted domed cover—easy to open, self-closing for condensate return.
  • 2" compression tangent draw-off valve with ¼" perforated disc strainer for smooth portioning.
  • Integrated kettle-protection system: thermostat (150 °F – 285 °F), low-water cut-off, pressure relief valve, air eliminator & gauge.
  • Rugged, seam-welded 304 SS outer jacket plus adjustable bullet feet for a rock-solid stance.
  • cCSAus & NSF certified; proudly made in the USA.
Perfect For
  • Soups, chowders & stocks
  • Chili, curries & stews
  • Custards & puddings
  • Oatmeal & hot cereals
  • Blanching vegetables or pasta
Specifications
Capacity 40 gal (151 L)
Construction Deep-drawn 316 SS liner, 304 SS jacket & outer casing
Jacket Rating 30 PSI, 2⁄3 coverage
Heating Electric, 24 kW, field-replaceable elements
Temperature Range 150 °F – 285 °F (66 °C – 141 °C) thermostatic control
Cover One-piece, spring/actuator assisted, stainless steel
Draw-Off 2" compression valve with ¼" perforated strainer disc
Mounting Four stainless legs with adjustable bullet feet
Certifications cCSAus, NSF
Electrical Requirements
Voltage Options 208 V, 240 V, 380 V, 415 V, 440 V, 480 V (1 ɸ or 3 ɸ)
kW 24 kW
Amps (1 ɸ) 208 V 115.4 A | 240 V 100 A | 380 V 63.2 A | 415 V 57.8 A | 440 V 54.5 A | 480 V 50 A
Amps (3 ɸ) 208 V 66.6 A | 240 V 57.7 A | 380 V 36.5 A | 415 V 33.4 A | 440 V 31.5 A | 480 V 28.9 A
What’s in the Box
  • Edge Series™ ALHEC-40 kettle with actuator-assisted cover
  • Perforated ¼" disc strainer
  • Owner’s manual & installation kit
  • One-year parts & labor warranty
Need more flexibility? Optional faucets, spray hoses, timers, basket inserts, water-metering and correctional packages are available to tailor the kettle to your exact workflow.

Specifications are subject to change without notice. Always consult the installation manual and local codes before ordering or installing.

Features & Specs

Manufacturer

AccuTemp

Brand_name

Edge Series™

Certifications

NSF, cCSAus

Height

59.6in

Width

37.4in

Kettle Jacket

partial jacket

Kettle Liner

316 stainless steel

Capacity

30 - 45 gallon

Specifications

AccuTemp Edge Series™ Stationary Kettle, Electric, 40 gallon capacity, 2/3 jacket, 316 stainless steel liner, electronic ignition, 1 piece actuator-assisted cover, field replaceable heating elements, insulated, deep-drawn stainless steel construction, 2” compression draw-off valve, leg mounted, 30 PSI, cCSAus, NSF
