Jackson WWS RACKSTAR 66CEL RackStar® Conveyor Dishwashers
Jackson WWS RACKSTAR 66CEL RackStar® Conveyor Dishwashers is backordered and will ship as soon as it is back in stock.
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Features & Specs
Features & Specs
Manufacturer
Brand_name
Certifications
Height
Width
Depth
Shipping Weight
Rack Capacity
Construction
Temperature
Tank Heat
Tank design
Specifications
Jackson WWS RACKSTAR 66CEL RackStar® Conveyor Dishwashers
Description

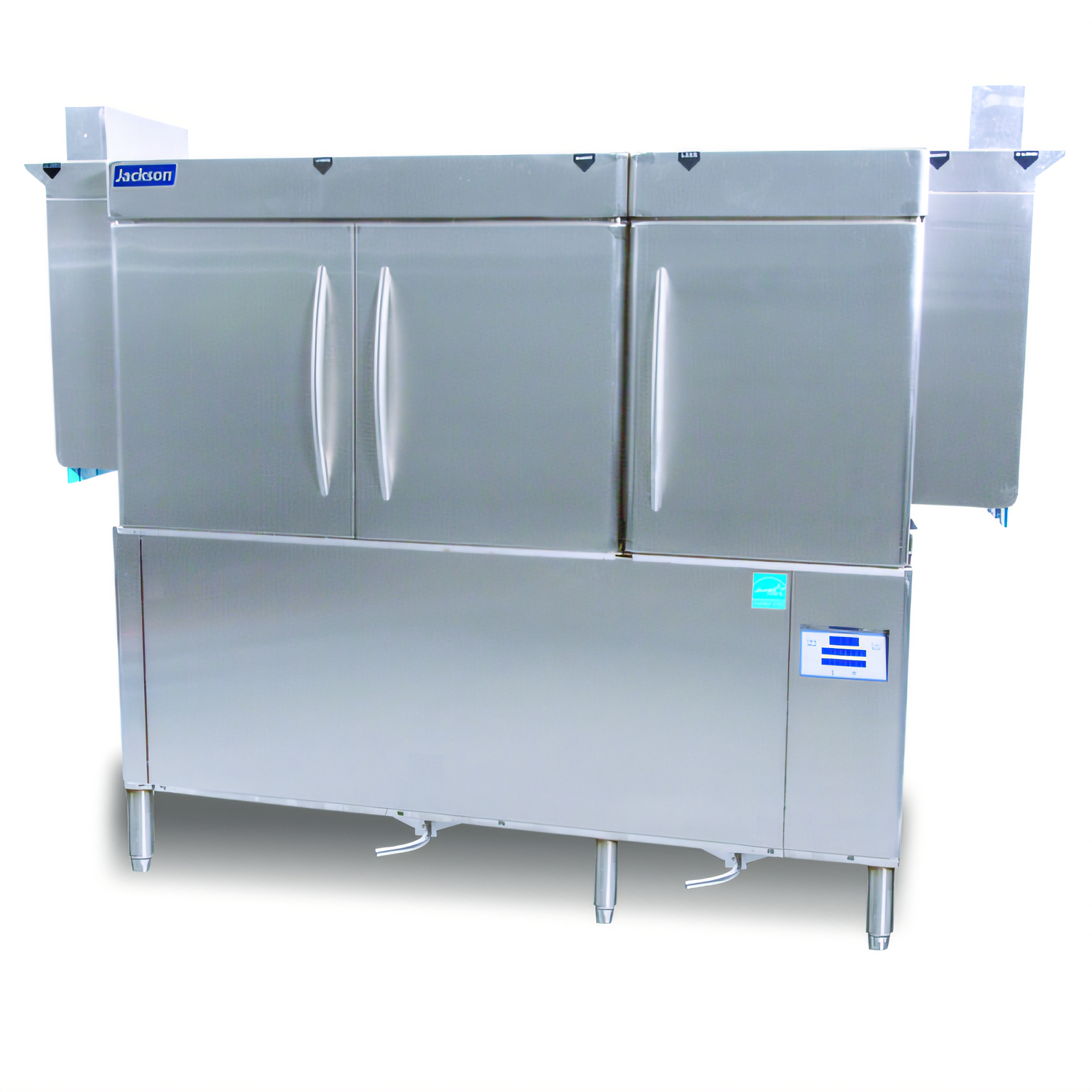

Jackson RackStar® 66 Low-Temp Conveyor Dishwasher
223 racks / hour • 0.35 gal per rack • 66-inch single-tank designThe Jackson RackStar® 66 is built for high-volume kitchens that refuse to choose between performance and savings. Using as little as 0.35 gallons of water per rack in Econo mode, this low-temperature, chemical-sanitizing conveyor delivers spotless ware while driving down operating costs.
Why You’ll Love It
- Dual Rainbow Rinse™ system with selectable Econo (0.35 gpr) or Turbo (0.52 gpr) settings.
- 22" dedicated pre-wash section removes heavy soil before the main wash.
- WISR® Cleaning System & self-cleaning wash arms for consistent “Clean the First Time®” results.
- EnergyGuard™ controls start the pumps only when racks are present—no wasted utilities.
- Fully automatic operation with auto-fill, digital temperature read-out, and delime mode.
- Double-wall, 180° hinged doors are insulated to hold heat and reduce noise in the dishroom.
- Rugged stainless-steel frame, legs, and strainer pans; adjustable bullet feet for quick leveling.
- Vent cowl collars with adjustable dampers plus automatic exhaust fan control.
- cETLus & ETL-Sanitation listed for peace of mind and code compliance.
Built for Maximum Throughput
- Throughput: Up to 223 racks per hour (5,575 dishes / 8,028 glasses).
- 3 HP wash pump & 2 HP pre-wash pump move 490 GPM combined.
- 1/4 HP conveyor motor advances racks at 6.07 FPM.
- 25-gallon wash tank with powerful 15 kW electric tank heater.
- Self-draining pump and automatic tank flush help speed end-of-shift clean-up.
Key Specifications
| Model | RackStar® 66 – Low-Temp Chemical, Electric Tank Heat |
|---|---|
| Overall Length | 68 ½" (1740 mm) |
| Length Between Dishtables | 66" (1676 mm) |
| Depth × Height | 30" × 73 ½–76" (762 mm × 1867–1930 mm) |
| Inside Clearance | 19 ¾" (502 mm) |
| Racks / Hour | 223 |
| Water Consumption | 0.35 gal / rack (Econo) | 0.52 gal / rack (Turbo) |
| Wash Tank Capacity | 25 gal (95 L) |
| Pump Motors | Pre-wash 2 HP | Wash 3 HP |
| Conveyor Motor | ¼ HP |
| Electrical | 208 / 230 / 460 V, 60 Hz, 3-phase (consult spec sheet for amp draw) |
| Water Connections | ½" IPS (110 °F minimum inlet) |
| Drain Connection | 1 ½" IPS |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 1-year parts & labor (US & Canada, registration required) |
Detailed electrical, plumbing, and venting information is available in the RackStar 66 specification sheet. Always verify utility requirements prior to installation.
