Hobart CUL-1 Warewash - Centerline Undercounter Dishwashers
Hobart CUL-1 Warewash - Centerline Undercounter Dishwashers is backordered and will ship as soon as it is back in stock.
Documents
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

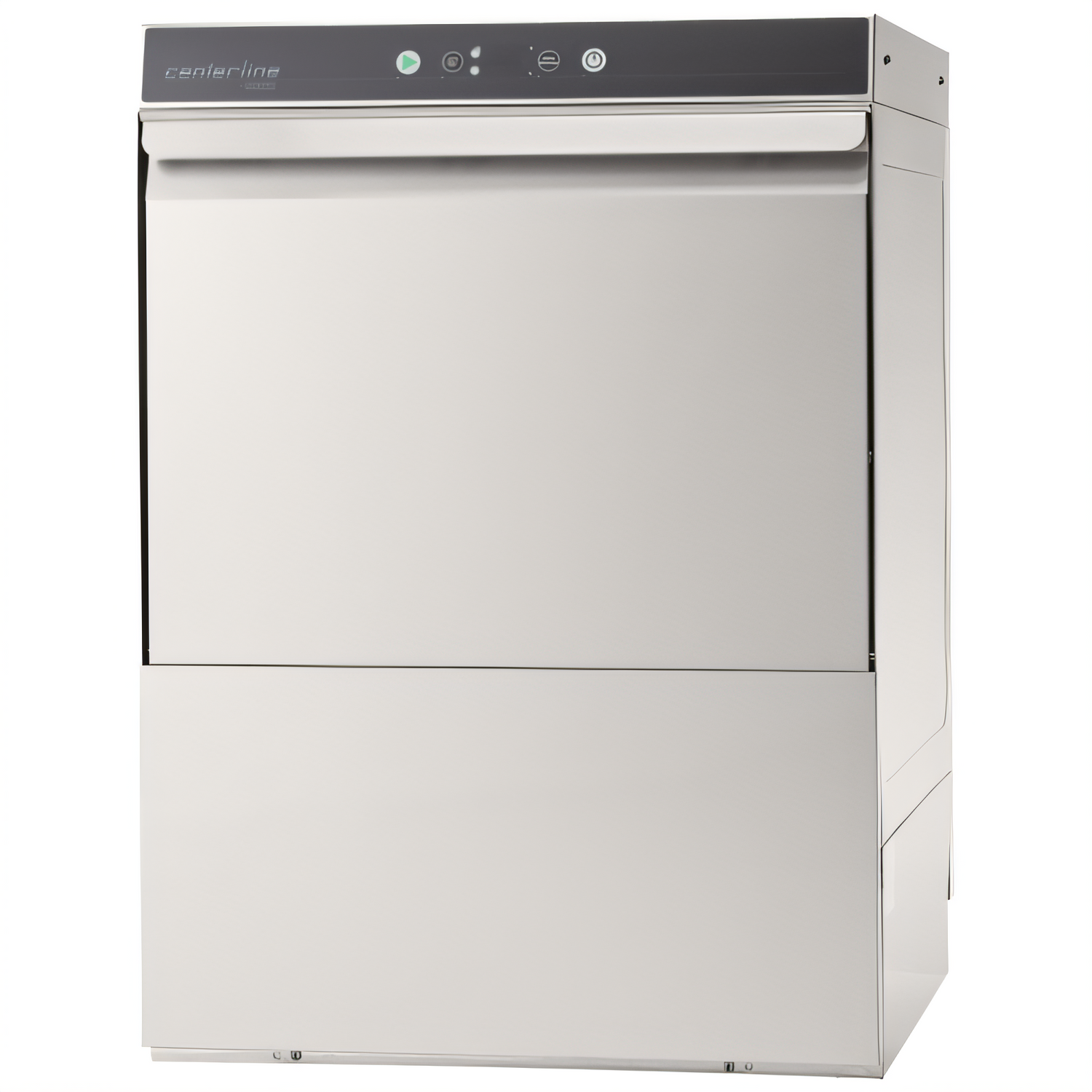

Centerline™ by Hobart CUL Undercounter Dishwasher
Low-Temperature Chemical Sanitizing • ENERGY STAR® QualifiedGet high-volume performance from a small footprint. The Centerline CUL undercounter dishwasher handles up to 24 racks per hour while using just 0.84 gallons of fresh water per rack—perfect for bars, cafés, and satellite kitchens that need spotless ware fast.
Why You’ll Love It
- High throughput: 24 racks/hour with a quick 2-minute cycle (optional extended cycle for extra-dirty ware).
- Ultra-efficient: Low-temperature chemical sanitizing uses only 0.84 gal of water per rack and qualifies for ENERGY STAR® rebates.
- Built-in chemical pumps: Dedicated pumps for detergent, rinse aid and sanitizer—no external mixers required.
- Fresh-water rinse: Every cycle finishes with a fresh water rinse for consistent, sparkling results.
- Soft Start™: Protects delicate stemware by gently ramping up wash pressure.
- Delime notification & cycle: Reminds operators when it’s time to delime and runs the cycle automatically.
- Service diagnostics: On-board error notifications speed troubleshooting and reduce downtime.
- Top-mounted interface: Easy-to-read digital display shows temperatures and cycle status at a glance.
- Easy cleaning: Snap-in single wash/rinse arm and 3-part stainless scrap screen pop out for sink-side cleaning.
- Ready to wash: Ships with one peg rack & one combination rack.
Technical Specifications
Model | CUL (Chemical Sanitizing) |
---|---|
Capacity | 24 racks/hour • Standard 20 × 20 in racks |
Cycle Time | 120 sec (standard) • 240 sec (factory-set extended) |
Water Usage | 0.84 gal per rack • 20.2 gal per hr (max) |
Door/Loading Height | 14.46 in |
Machine Dimensions | 22-11/16 W × 24 D × 32-5/16 H in |
Tank Capacity | 5.3 gal (electric heat 2.0 kW) |
Motor Horsepower | Wash 0.62 HP • Rinse 0.20 HP |
Drain | Automatic pumped • 19 mm barb with 6 ft hose • Peak flow 2.8 gpm |
Electrical | 120 V / 60 Hz / 1-ph • 17.5 A • 20 A circuit |
Incoming Water | 120 °F minimum (140 °F recommended) |
Certifications | cULus • NSF • ENERGY STAR® |
Shipping Weight | ≈ 148 lb (crated) |
Included Racks | 1 peg rack • 1 combination rack |
Popular Accessories
- Stainless steel stand with rack storage (adds 15-7/8 – 17-7/8 in height)
- Upper/lower stainless wash & rinse arm kit
- Chemical low-level sensing indicators
- Additional peg or combination racks
- Power-cord kits
Warranty
1-year parts & labor, backed by Hobart’s nationwide service network.
Electrical and plumbing connections must meet local code. Chemicals sold separately.
