CMA Dishmachines | SKU:
AH
CMA Dishmachines AH Energy Mizer Dishwashers
$5,890.00
Unit price
/
Unavailable
Delivered by , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
CMA Dishmachines AH Energy Mizer Dishwashers is backordered and will ship as soon as it is back in stock.
Documents
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
CMA Dishmachines AH Energy Mizer Dishwashers
$5,890.00
Unit price
/
Unavailable
Description

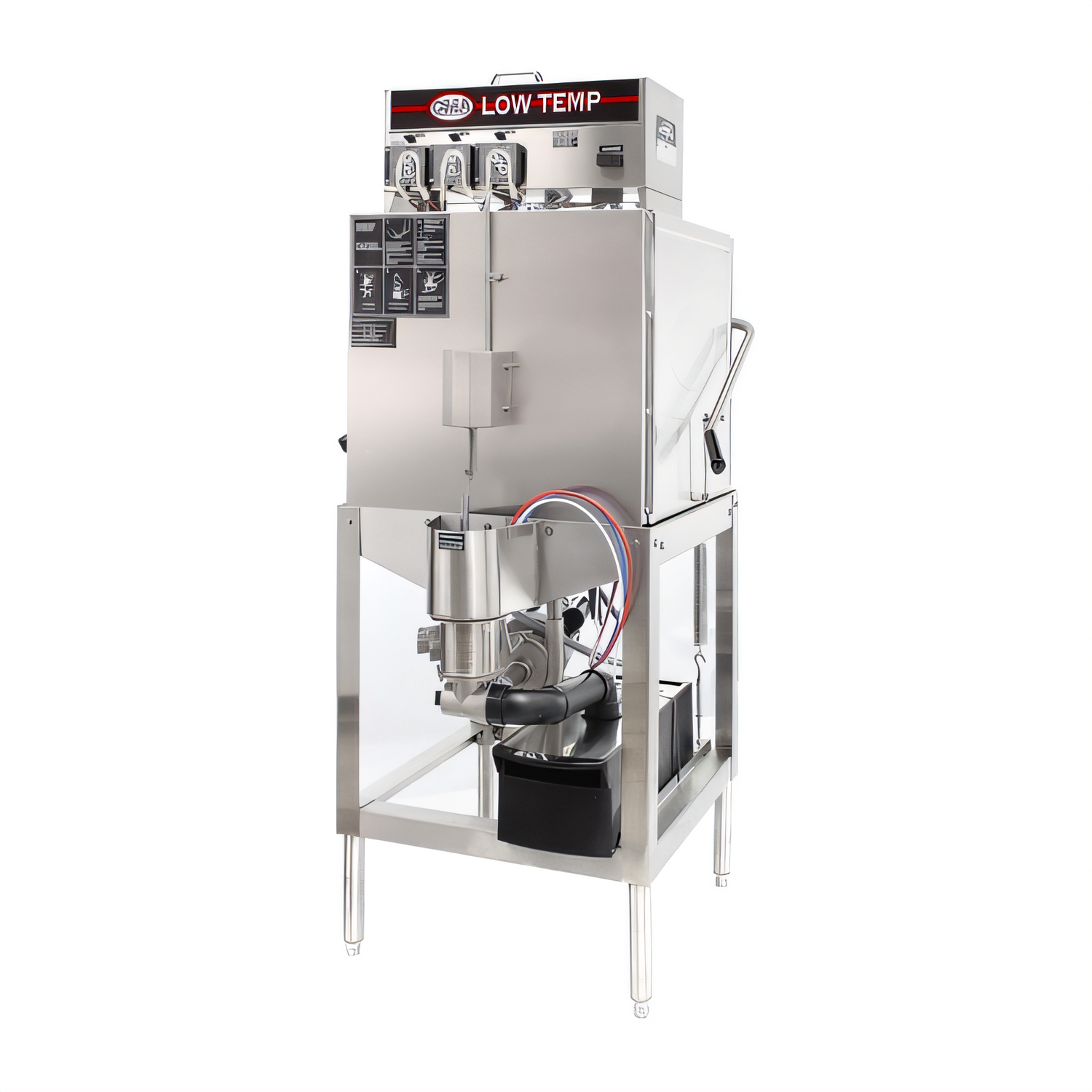

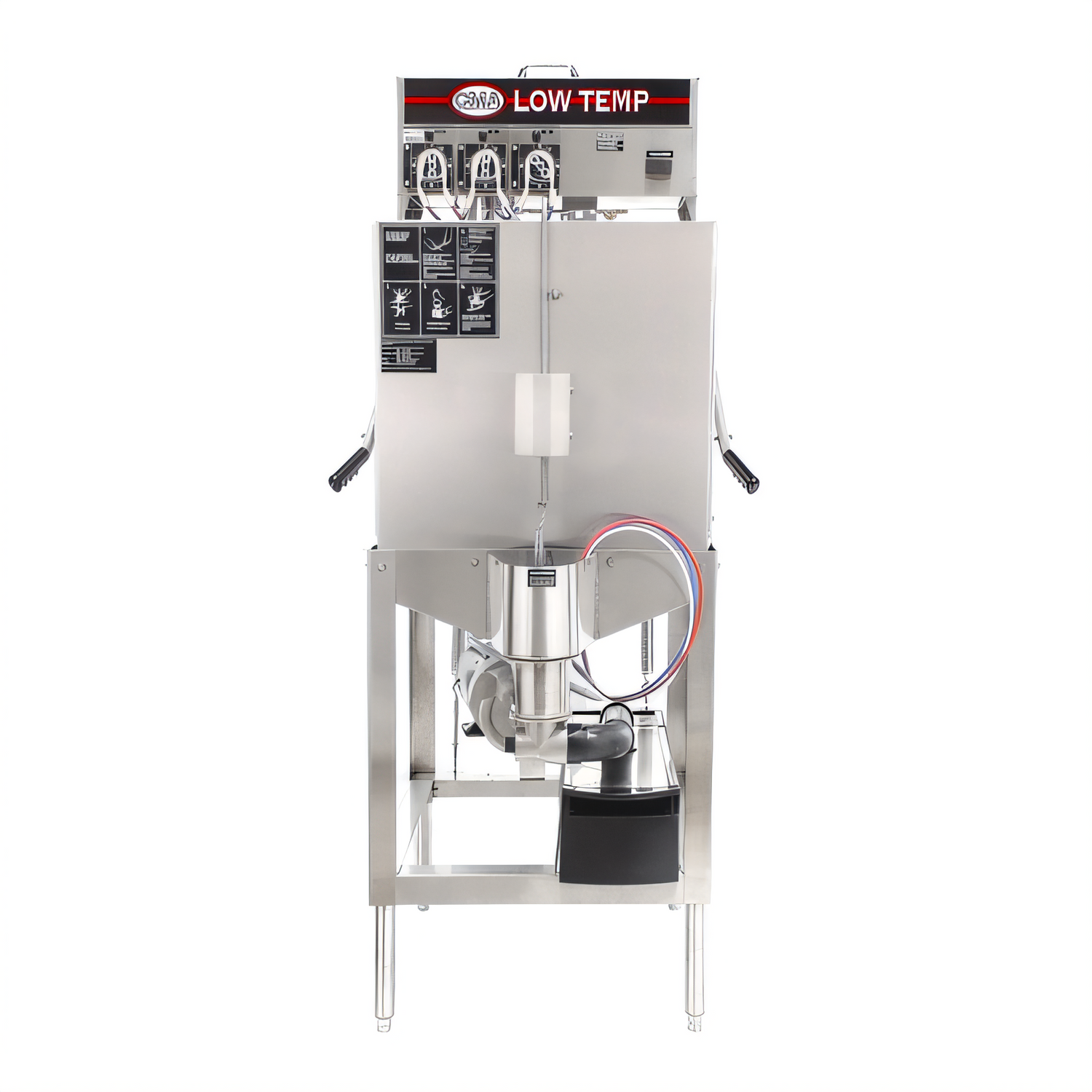

CMA Energy Mizer® AH Low-Temperature Door-Type Dishwasher
40 racks/hour • Straight-thru design • Chemical sanitizingSlash energy costs without sacrificing sparkle. The Energy Mizer® AH from CMA Dishmachines sanitizes with low-temperature chemicals—no booster heater, no steam, just spotless results in a compact, 25-3/4″-wide footprint built for the busiest commercial kitchens.
Key Benefits
- Low-temp chemical sanitizing eliminates the need for a costly booster heater.
- 90-second automatic cycle processes up to 40 racks (≈160 covers) per hour.
- Top-mounted controls with built-in chemical pumps, priming switches & delimer switch.
- Auto start/stop activates when the door closes—no buttons to press.
- Poly Pro™ scrap accumulator keeps food soil out of the drain for trouble-free operation.
- Upper & lower stainless-steel wash arms with reinforced end caps for full-coverage cleaning.
- Pump-purging rinse reduces chemical carryover for crystal-clear ware.
- Includes 1 open rack & 1 peg rack to handle everything from sheet pans to glasses.
- All-stainless steel construction, 1 HP wash pump & NSF/cULus certifications.
Built to Last
- Stainless-steel frame, panels & impeller for years of corrosion-resistant service.
- 3/4″ water inlet strainer prevents debris from clogging the valve.
- Door opening: 20-1/2″ with 17″ maximum dish clearance—fits oversized plates and trays.
Performance & Utility Data
| Throughput | 40 racks / 160 covers per hour |
|---|---|
| Total Cycle Time | 90 s (45 s wash • 30 s rinse • 15 s dwell) |
| Water Usage | 1.7 gal per rack (68 gal per hour) |
| Incoming Water Temp | 120 °F required • 140 °F recommended |
| Wash Pump | 1 HP • 52 GPM |
| Electrical | 115 V • 1 ph • 16 A |
| Rack Size | 20″ × 20″ (open & peg racks included) |
| Dimensions | 25-3/4″ W × 25-3/4″ D × 56-57″ H |
| Shipping Weight | Approx. 259 lb |
| Certifications | NSF • cULus |
What’s in the Box
- Energy Mizer® AH dishwasher
- 1 open rack & 1 peg rack
- Factory-installed chemical pumps & tubing
- Owner’s/installation manual
Installation note: This machine must be installed by a qualified professional in accordance with
all local plumbing, electrical & sanitation codes. A minimum 120 °F hot-water supply,
≤ 3.5 gpg water hardness, approved detergents and a proper drain connection are required for optimal results.
Covered by CMA Dishmachines’ 1-year parts & labor warranty.
Features & Specs
Features & Specs
Manufacturer
CMA Dishmachines
Brand_name
Energy Mizer
Certifications
NSF, cULus
Height
57.0in
Width
25.75in
Depth
25.0in
Shipping Weight
259.0lbs
Design
straight-thru
Rack Capacity
approximately (40) racks/hour
Construction
stainless steel
Racks
single
Temperature
low temp chemical
Specifications
Energy Mizer® Dishwasher, door type, 25-3/4" W, low temperature chemical sanitizing with priming switches, top mounted controls, auto "start/stop", straight-thru design, (40) racks/hour, delimer switch, Poly Pro™ scrap accumulator, stainless steel construction, includes (1) open & (1) peg rack, 1 HP wash pump, NSF, cULus
