Lang Manufacturing (Middleby) 248T LG Series Gas Griddles

$10,370.00

Features & Specs

Manufacturer

Lang Manufacturing (Middleby)

Brand_name

LG Series

Certifications

cULus, UL EPH

Height

16.4in

Width

48.0in

Depth

30.4in

Shipping Weight

520.0lbs

Exterior Finish

all stainless steel exterior

Griddle Plate Finish

smooth steel

Controls

thermostat / solid state controls

Cooking Surface Depth (front - back)

20" - 23"

Cooking Surface Width (side - side)

43" - 48"

Plate Thickness

1"

Specifications

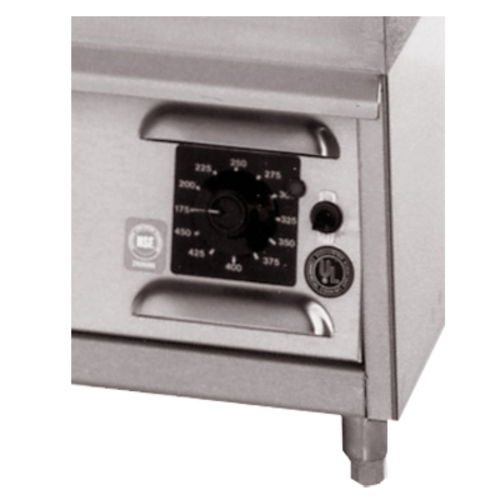

LG Series Griddle, countertop, gas, 48"W x 23"D cooking surface, 1" thick steel griddle plate, 200° - 450° F embedded electric snap-action thermostats with pilot safety, welded steel frame with stainless steel exterior, 5" tapered wrap-around splash guard, 3-1/2" front grease trough, 8 qt. stainless steel grease drawer, 4" adjustable stainless steel legs, 108,000 BTU, 120V/60/1-ph, NEMA 5-15P, UL, NSF
Description
LG Series Griddle, countertop, gas, 48"W x 23"D cooking surface, 1" thick steel griddle plate, 200° - 450° F embedded electric snap-action thermostats with pilot safety, welded steel frame with stainless steel exterior, 5" tapered wrap-around splash guard, 3-1/2" front grease trough, 8 qt. stainless steel grease drawer, 4" adjustable stainless steel legs, 108,000 BTU, 120V/60/1-ph, NEMA 5-15P, UL, NSF
48-IN GRIDDLE, SNAP-ACTION, LP
