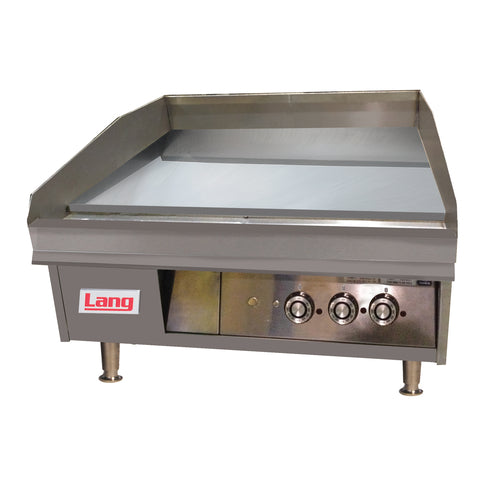

Lang Manufacturing (Middleby) 236SC LG Series Gas Griddles

$17,855.00

Features & Specs

Manufacturer

Lang Manufacturing (Middleby)

Brand_name

LG Series

Certifications

cULus, UL EPH

Height

16.4in

Width

24.0in

Depth

30.4in

Shipping Weight

280.0lbs

Plate Thickness

1"

Griddle Plate Finish

chrome plated

Cooking Surface Width (side - side)

31" - 36"

Exterior Finish

all stainless steel exterior

Cooking Surface Depth (front - back)

20" - 23"

Controls

thermostat / solid state controls

Specifications

LG Series Griddle, countertop, gas, 36"W x 23"D cooking surface, 1" thick chrome-plated griddle plate, 175° - 450° F solid state thermostats with pilot safety, welded steel frame with stainless steel exterior, 5" tapered wrap-around splash guard, 3-1/2" front grease trough, 8 qt. stainless steel grease drawer, 4" adjustable stainless steel legs, 81,000 BTU, 120V/60/1-ph, NEMA 5-15P, UL, NSF
Description
LG Series Griddle, countertop, gas, 36"W x 23"D cooking surface, 1" thick chrome-plated griddle plate, 175° - 450° F solid state thermostats with pilot safety, welded steel frame with stainless steel exterior, 5" tapered wrap-around splash guard, 3-1/2" front grease trough, 8 qt. stainless steel grease drawer, 4" adjustable stainless steel legs, 81,000 BTU, 120V/60/1-ph, NEMA 5-15P, UL, NSF
