Delfield DIS-1013 Dish & Tray Dispensers
Delfield DIS-1013 Dish & Tray Dispensers is backordered and will ship as soon as it is back in stock.
Documents
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Delfield DIS-1013 Dish & Tray Dispensers
Description

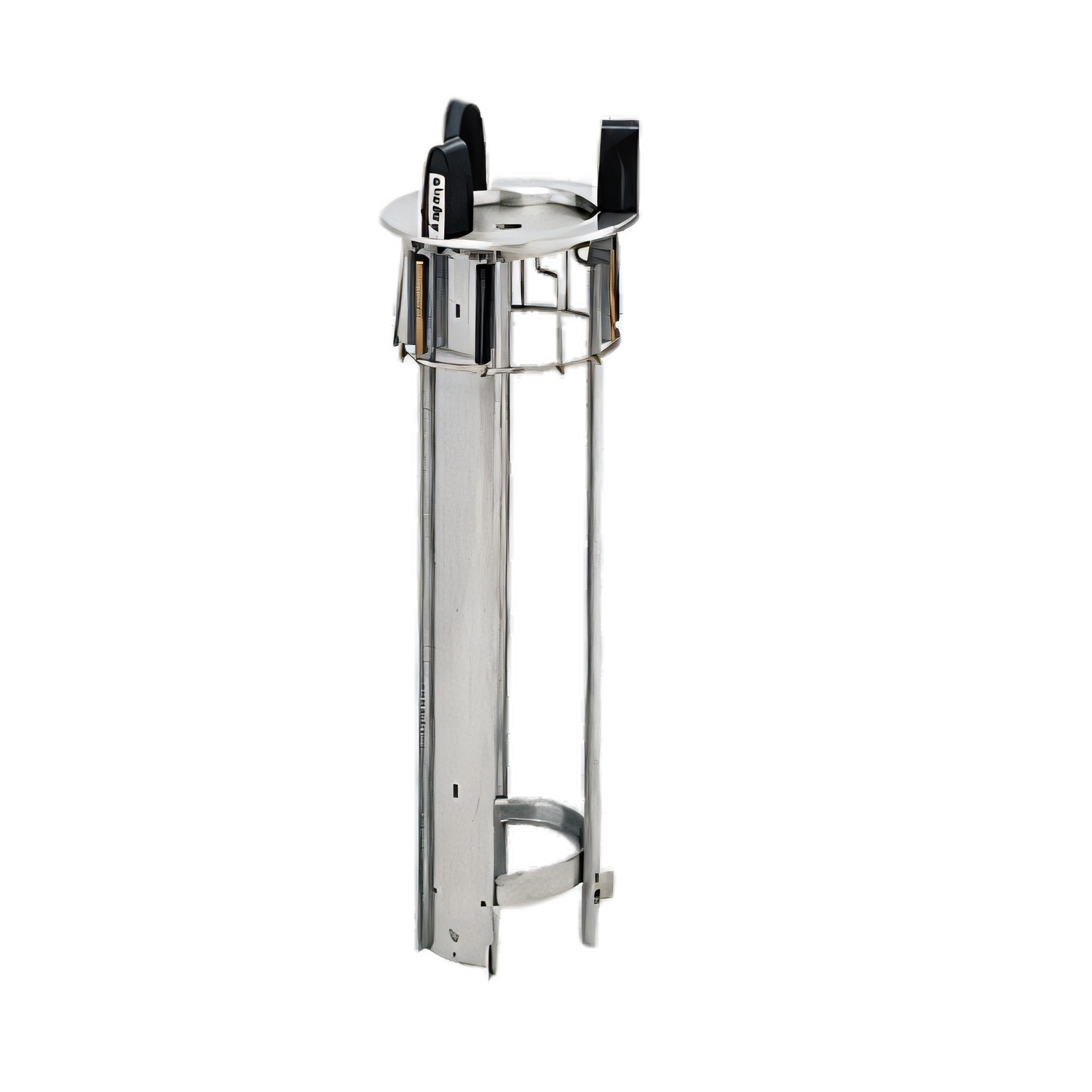

Delfield DIS-1013 Drop-In Plate Dispenser
10.12" max plate • Single self-elevating tube • Non-heatedKeep service lines moving and plates protected with Delfield’s industry-leading drop-in dish dispenser. The DIS-1013 fits flush in your counter, automatically raises plates to the perfect serving height, and stands up to years of high-volume use thanks to its all-stainless construction.
Why You’ll Love It
- Self-leveling presentation – stainless steel springs adjust on the fly so the top plate is always within easy reach.
- Built for busy kitchens – welded stainless steel flange, side channels and bottom brace resist corrosion, dents and warping.
- Quick “drop-in” install – 13½" flange and factory-installed gasket create a seamless press-fit in new or existing counters.
- Field-adjustable capacity – add or remove springs to match plate weight and keep stacks perfectly level.
- Smooth, sanitary dispensing – high-impact plastic guide posts prevent metal-to-porcelain contact and reduce chipping.
- Certified & safe – cULus and NSF listings meet today’s most stringent health and electrical safety codes.
- Peace-of-mind warranty – 1-year parts and 90-day labor coverage included at no extra cost.
Technical Specifications
| Model | DIS-1013 (non-heated) |
|---|---|
| Dish diameter range | 9.12" – 10.12" (23 – 26 cm) |
| Maximum stack capacity | ≈ 72 plates / 24" (61 cm) stack height |
| Overall tube depth | 28" (71 cm) |
| Flange diameter | 13.5" (34 cm) |
| Counter cut-out required | 12.87" (32.7 cm) diameter |
| Construction | Stainless steel tube, top flange, bottom brace & side channels; steel frame |
| Weight (ship) | 13 lb (6 kg) |
| Compliance | cUL, UL, NSF listed |
| Warranty | 1-year parts • 90-day labor |
Installation hardware supplied. Counter opening must match cut-out size and support 13 lb load. Allow adequate clearance below for plate stack height and spring adjustment.
