Delfield

Delfield CAB2-575ET Shelleymatic Dish & Tray Dispensers

$4,557.26
Delivered by , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Service manual Warranty sheet

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

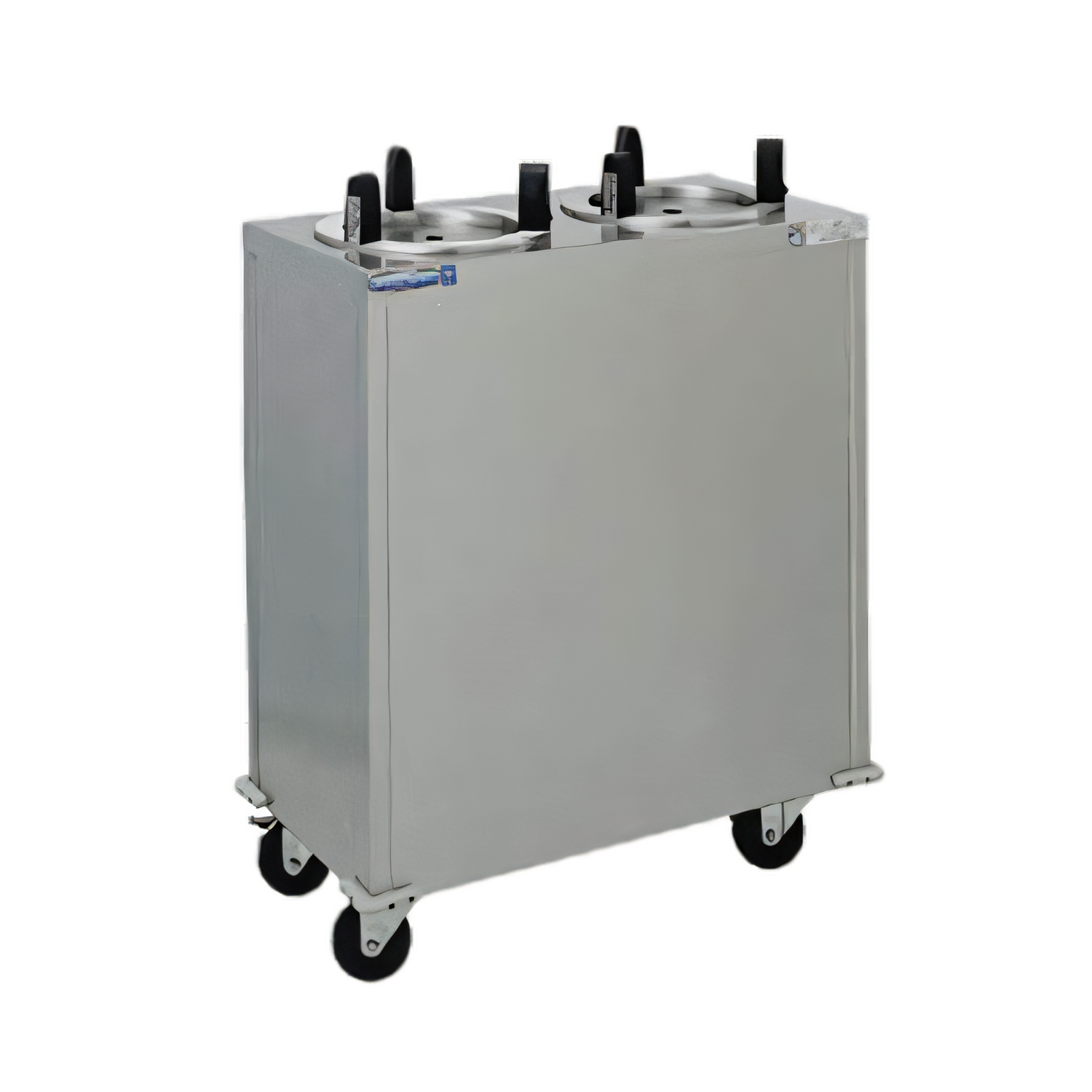

Shelleymatic® CAB2-575ET Even Temp Heated Dish Dispenser

Delfield | 2-stack enclosed mobile design

Keep every plate service-ready with Shelleymatic’s field-proven Even Temp technology. This compact, stainless-steel cart gently heats, stores and dispenses up to 144 plates (5"–5 ¾" Ø) while gliding effortlessly from kitchen to serving line on four all-locking 4" casters.

Why You’ll Love It
  • Even Temp convection heat maintains 120 – 140 °F (49 – 60 °C) for uniformly warmed dishware.
  • Two self-elevating tubes automatically raise plates to the top for ergonomic, one-hand access.
  • (2) 400 W heating modules with dedicated fan motors and adjustable thermostats—no cold spots.
  • Accepts round china or melamine plates up to 5 ¾" (14.6 cm) diameter; ~72 plates per tube.
  • Rugged 16-ga top & 20-ga body, fully welded seams and non-marring corner bumpers.
  • Easy-roll 4" polyolefin swivel casters (all locking) + 9 ft cord with NEMA 5-20P plug.
  • Field-adjustable springs let you fine-tune lift tension as plate inventory changes.
  • cUL-us & NSF listed; backed by Delfield’s 1-year parts / 90-day labor warranty.
At-a-Glance Specs
Model CAB2-575ET
Dish diameter range 5.00" – 5.75" (13 – 15 cm)
Capacity ≈ 72 plates per tube | ≈ 144 total
Temperature 120 °F – 140 °F (49 °C – 60 °C)
Heat output 800 W total (2 × 400 W)
Electrical 120 V / 60 Hz / 1 Ph / 11.0 A  •  9 ft cord & NEMA 5-20P plug
Exterior dimensions 28.25" L × 17.00" D × 36.00" H  (72 × 43 × 92 cm)
Shipping weight ≈ 146 lb (66 kg)
Construction Stainless steel top, body & dispenser tubes
Mobility 4" all-locking polyolefin swivel casters
Certifications cUL-us, UL, NSF
Applications
  • Hotels & resorts
  • Catering & banquet halls
  • Universities & school dining
  • Healthcare & senior living foodservice
  • Any high-volume operation needing pre-warmed dishware
Heads-up: Always verify your plate diameter before ordering. The CAB2-575ET is optimized for round dishes up to 5 ¾". Using larger ware may obstruct the self-leveling mechanism.

Need a larger diameter or unheated configuration? Ask our team about the full Shelleymatic CAB2 series.

Features & Specs

Manufacturer

Delfield

Brand_name

Shelleymatic

Certifications

NSF, UL

Height

36.0in

Width

28.25in

Depth

17.0in

Shipping Weight

146.0lbs

Plate Style

round

Plate Diameter

5" - 9"

Compartment Qty

(2) compartments

Type

heated

Base Style

enclosed

Specifications

Shelleymatic® Even Temp Dispenser, Heated Dish, enclosed mobile design, two self-elevating dish dispensing tubes, maximum dish size approximately 5-3/4" diameter, stainless steel construction, (2) 400 watt heating elements, 4" casters, cUL, UL, NSF
