Delfield CAB2-575 Shelleymatic Dish & Tray Dispensers
Description

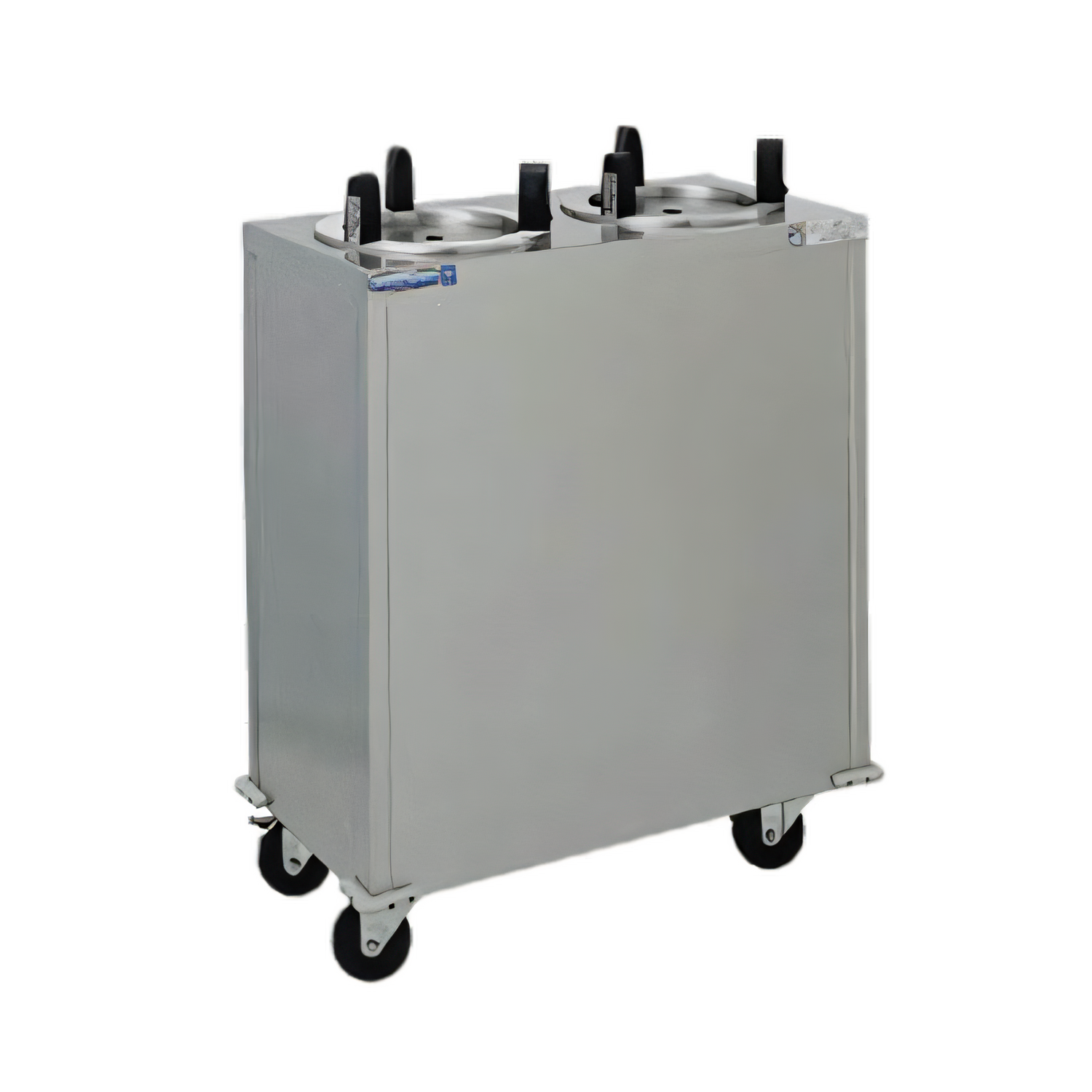

Shelleymatic® Mobile Enclosed Plate Dispenser
Model CAB2-575 | two self-leveling tubes | up to 5-3/4" platesSpeed service while protecting your tableware. The Delfield Shelleymatic® CAB2-575 keeps stacks of small plates clean, contained and always at the ideal hand-off height—anywhere you roll it.
Why operators choose the CAB2-575
- Dual self-elevating tubes automatically raise plates as each one is removed—no spring hunting or manual lifting.
- Accepts round dishes from 5" to 5-3/4" (13–15 cm) diameter; perfect for bread, dessert or salad plates.
- Field-adjustable spring tension lets you tune lift action to heavier or lighter china.
- Rugged 16-gauge stainless top and 20-gauge body with welded corners stand up to daily use and chemical cleaning.
- Stainless steel carrier heads with removable 18-gauge top plates for fast sanitation.
- (4) 4" locking polyolefin swivel casters and non-marring gray corner bumpers for safe, easy mobility.
- Completely enclosed cabinet shields dishes from splashes and airborne contaminants.
- Certified cULus and NSF to meet health-code and electrical safety requirements.
- Backed by Delfield’s 1-year parts/90-day labor warranty for worry-free ownership.
Technical specifications
| Dish diameter range | 5.00" – 5.75" (13 – 15 cm) |
|---|---|
| Tubes / style | 2 × self-elevating, unheated |
| Approx. capacity | ≈72 plates per tube (24" stack height) |
| Overall dimensions | 28.25" L × 17.00" D × 36.00" H (72 × 43 × 92 cm) |
| Construction | 16-ga S/S top, 20-ga S/S body, integrally welded dispenser assemblies |
| Mobility | (4) 4" locking polyolefin casters, corner bumpers |
| Certifications | cULus, NSF |
| Warranty | 1-year parts • 90-day labor |
Perfect for
- Hospital & healthcare tray lines
- School, university & corporate dining
- Hotel breakfast and banquet service
- Buffet restaurants and catering halls
Need a larger diameter or optional heated tubes? The Shelleymatic® CAB2 series covers plates up to 14-1/2" with available EvenTemp™ or QuickTemp™ heating. Contact us for details.
