Delfield

Delfield CAB2-500 Shelleymatic Dish & Tray Dispensers

$2,877.84
Delivered by , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Service manual Warranty sheet

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

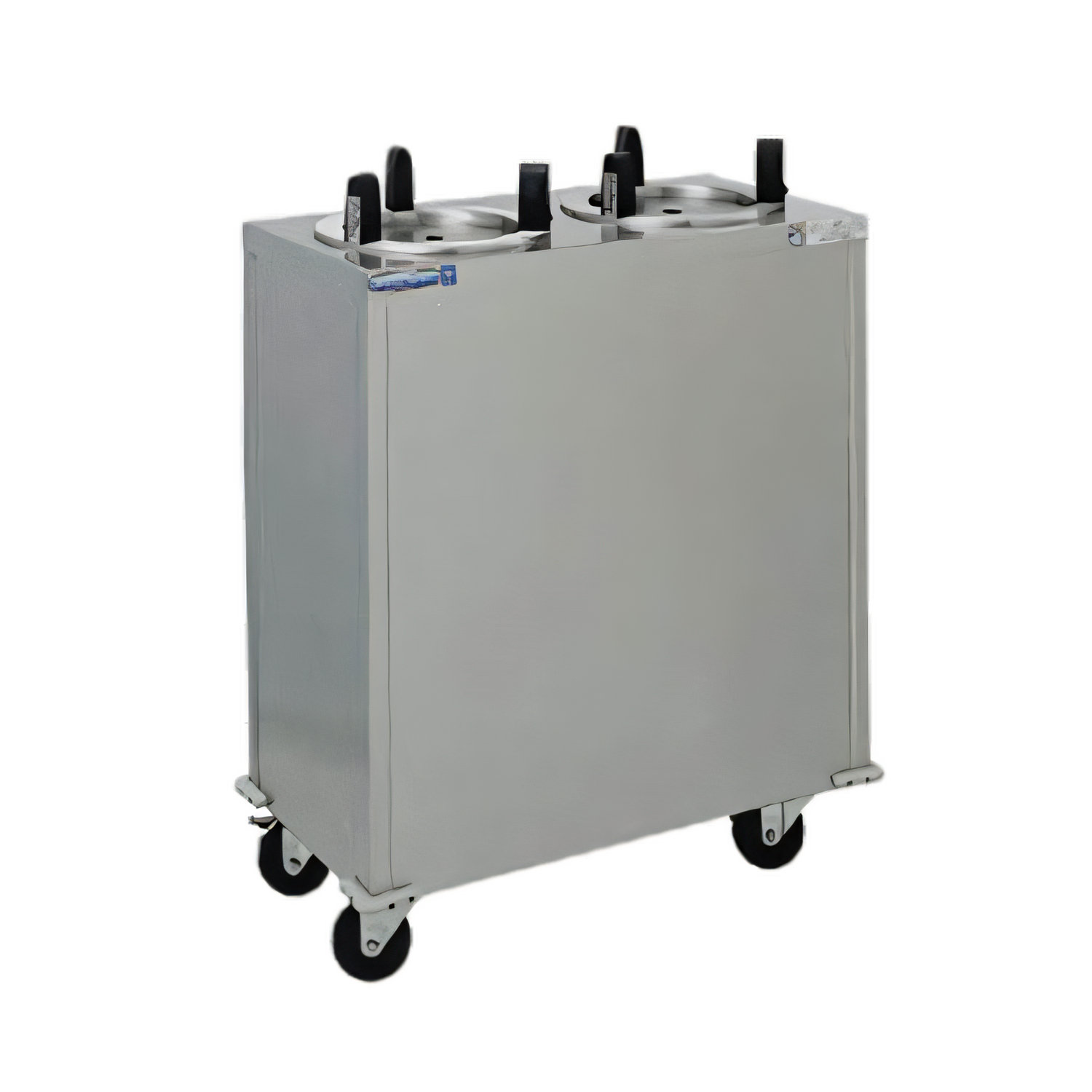

ShelleyMatic® CAB2-500 Mobile Enclosed Plate Dispenser

Two-stack, self-leveling · For plates up to 5" (13 cm) Ø

Keep every service running smoothly with Delfield’s ShelleyMatic CAB2-500. This compact, fully enclosed dispenser automatically lifts stacks of small plates to a convenient grab height while protecting them from dust and damage— ideal for cafés, bakeries and dessert stations.

Key Features

  • Handles round plates from 3"–5" (8–13 cm) in diameter.
  • Two self-elevating tubes with field-adjustable spring tension.
  • Capacity ≈ 72 plates per tube (144 total) up to 24" (61 cm) high.
  • Rugged 16-ga stainless steel top and welded 20-ga cabinet.
  • Welded rod carrier heads with removable 18-ga top plates for easy cleaning.
  • High-impact plastic guide posts keep stacks centered and protect rims.
  • (4) 4" locking polyolefin swivel casters plus non-marring corner bumpers.
  • cULus, UL and NSF listed for assured compliance.

Looking for larger sizes? ShelleyMatic models accommodate plates up to 14.5" Ø—ask us for details.

Specifications

Model CAB2-500 (unheated)
Dish diameter range 3.0" – 5.0" (8 – 13 cm)
Dispensing tubes 2 self-leveling
Approx. capacity ~72 plates per tube / 24" (61 cm) stack height
Overall length 28.25" (72 cm)
Overall depth 17.00" (43 cm)
Overall height 36.00" (92 cm)
Casters (4) 4" locking swivel, polyolefin
Construction Stainless steel top, body & structural members
Ship weight 125 lb (57 kg)
Power None required (unheated)
Certifications cULus, UL, NSF
Warranty 1 yr parts · 90 day labor

Popular Accessories

  • Wrap-around vinyl bumpers for extra impact protection.
  • Hold-down rods to secure dishes during transport.
  • 5" polyurethane casters for heavier loads.
  • Flange-mount feet in place of casters for stationary use.
  • Custom-length tubes for unique plate heights.
Unheated model: The CAB2-500 does not warm dishes. For temperature-controlled service, consider our Even-Temp (ET) or Quick-Temp (QT) heated versions.

Features & Specs

Manufacturer

Delfield

Brand_name

Shelleymatic

Certifications

NSF, UL

Height

36.0in

Width

28.25in

Depth

17.0in

Shipping Weight

125.0lbs

Plate Style

round

Plate Diameter

5" - 9"

Compartment Qty

(2) compartments

Base Style

enclosed

Type

unheated

Specifications

Shelleymatic® Dispenser, Plate, enclosed mobile design, two self-elevating dish dispensing tubes, maximum dish size approximately 5" diameter, stainless steel construction, 4" casters, cUL, UL, NSF
