Carter-Hoffmann (Middleby) PH2S Dish & Tray Dispensers
Carter-Hoffmann (Middleby) PH2S Dish & Tray Dispensers is backordered and will ship as soon as it is back in stock.
Documents
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Carter-Hoffmann (Middleby) PH2S Dish & Tray Dispensers
Description

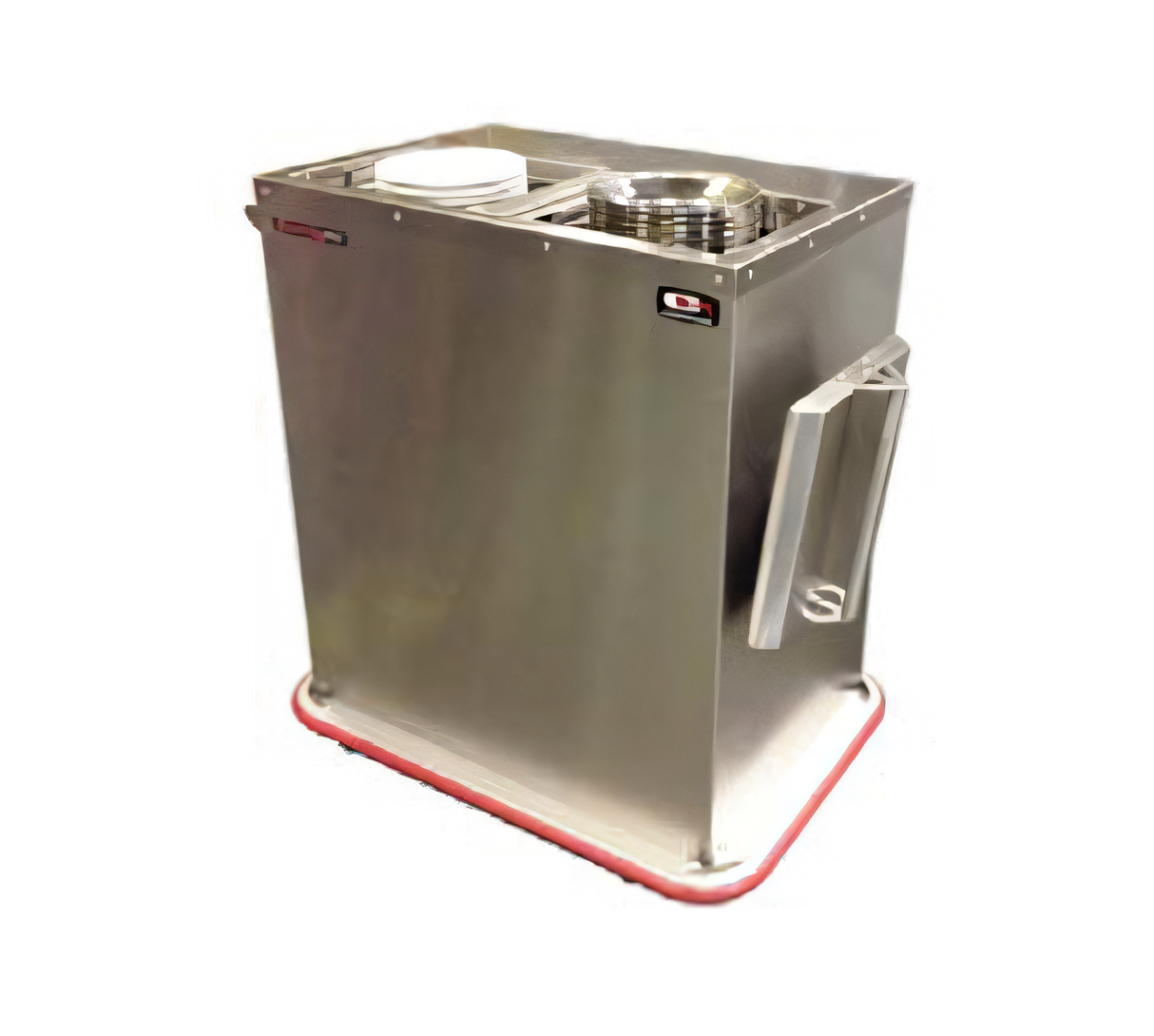

Carter-Hoffmann PH2S 2-Silo Convection Plate & Base Heater
Mobile self-leveling dispenser • 150 plates or 120 bases • 208 V, 1-phaseServe every guest on pre-heated china or insulated bases—without slowing down production. The Carter-Hoffmann PH2S uses a high-velocity convection system and self-leveling elevators to keep up to 150 plates (or 120 bases) at the ideal temperature and always within easy reach.
Key Advantages
- Two independent, self-leveling silos—75 plates or 60 bases each (7"–10.25" Ø)
- Factory-configured for plates; field-convertible to bases in minutes
- Plate / Base / Off toggle switch with factory-preset temps (Plate 230 °F, Base 325 °F)
- High-velocity blower and thermostatic control for fast, even heat circulation
- All-stainless, fully welded cabinet with wrap-around exterior panel for maximum rigidity
- Removable, gasket-free silo lids hang on side hooks—no lost parts, fewer burn risks
- Heavy-duty 12-gauge base frame and 3.5" all-swivel casters (2 with brakes) for smooth transport
- Full cabinet insulation retains heat and keeps exterior surfaces cooler to the touch
- 10 ft cord pre-wired with NEMA 6-20P plug; cULus & UL EPH Classified
Perfect For
- Banquet & convention centers
- Hotels & resorts
- Healthcare tray lines
- Catering operations
Technical Specifications
| Model | PH2S |
|---|---|
| Capacity | 150 plates (75 per silo) OR 120 bases (60 per silo) |
| Plate/Base Size Range | 7"–10.25" Ø (178–260 mm) |
| Overall Dimensions | 45"H × 23"D × 35-1/4"W (1143 × 584 × 895 mm) |
| Electrical | 208 V / 60 Hz / 1-phase • 3230 W • 15.4 A |
| Plug | NEMA 6-20P (10-ft, 3-wire cord included) |
| Heating Temperatures | Plate 230 °F (110 °C) / Base 325 °F (162 °C) |
| Construction | 18-ga stainless steel exterior, insulated; 12-ga stainless base frame |
| Casters | 3.5" all-swivel (2 braking), offset wheel-ahead pattern |
| Shipping Weight | Approx. 295 lb (134 kg) |
| Certifications | cULus • UL EPH Classified |
Capacity is approximate and varies with plate/base thickness. Spring tension can be adjusted to match your dinnerware weight.
